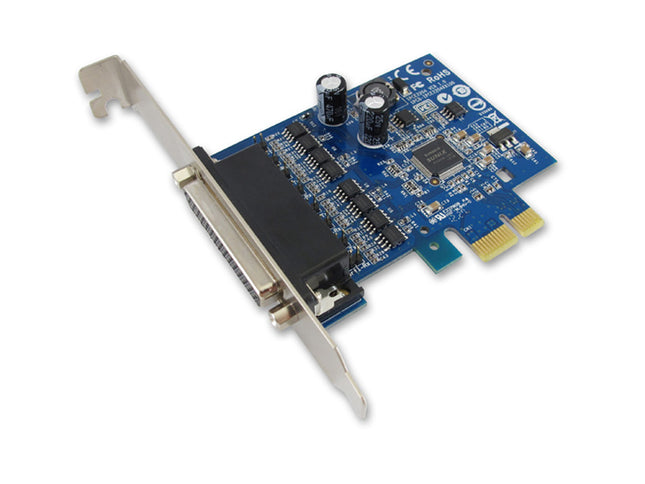

4710747387390 IPCE2204S SUNIX IPC-E2204S, Industrial 4-port RS-422/485 with Surge PCI-Express Serial Card, allows users to expand four RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O.
IPCE2204S would be fixed with ATX stand bracket
one extra low profile bracket into each box

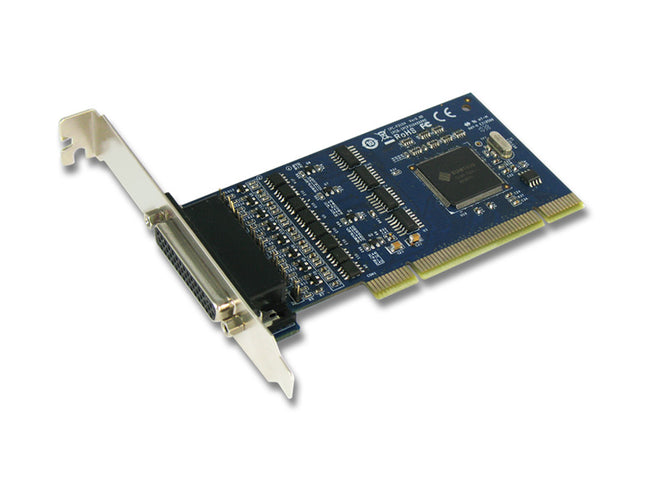

4710747389561 IPCP3104 Sunix IPCP3104 PCI 4-Port 3 in 1 RS 232/422/485 Card with DB9M connector, Up to 921.6 Kbps Support Windows, Linux, DOS, and UNIX
industrial standard universal PCI serial communication card, allows users to expand four RS-232/422/485 ports on PC-based system.
Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O.
With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
4710747389899 SER5416H Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS
Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
High speed SUN1999 16C950 compatible UART controller on-board.
Designed to meet PCI Express Base Specification Revision 1.1.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.
Serial Communication
Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Controller SUNIX SUN1999
(16C950 UART Compatible) Baud rate 50bps ~921.6Kbps
BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
No. of Port 16-port Parity even, odd, none, mark, space
IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
Dimension
PCB Dimension 120 x 110 mm
Bracket Standard 121 mm
Bracket Space 1
