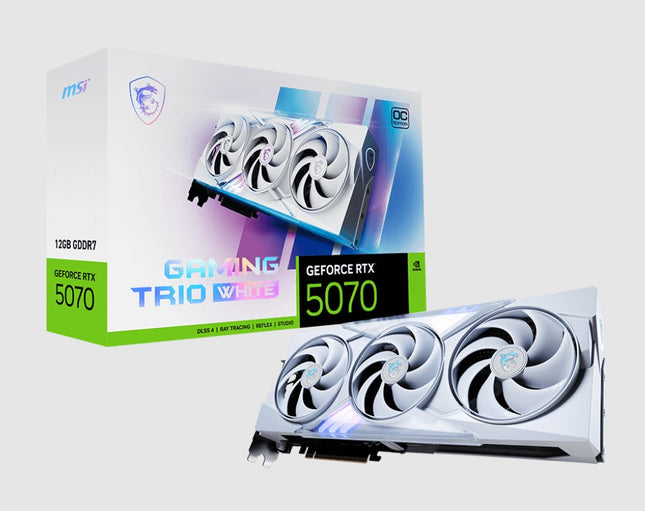

4711377303934 GeForce RTX 5070 12G GAMING TRIO OC WHITE MSI nVidia GeForce RTX™ 5070 12G GAMING TRIO OC WHITE, Boost: 2610 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G GAMING TRIO OC WHITE
Model Name G5070-12GTCW
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2625 MHz (MSI Center)
Boost: 2610 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1187 g / TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377292528 GeForce RTX 5080 16G VENTUS 3X OC PLUS MSI nVidia GeForce RTX™ 5080 16G VENTUS 3X OC PLUS, Boost: 2640 MHz, CUDA 10752 Units, 16GB GDDR7, HDMI™ x 1,
Marketing Name GeForce RTX™ 5080 16G VENTUS 3X OC PLUS
Model Name G5080-16V3CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1a)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 360 W
Power connectors 16-pin x 1
Recommended PSU 850 W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1105 g / TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377337649 GeForce RTX 5060 Ti 8G VENTUS 3X OC MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 3X OC, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 3X OC
Model Name G506T-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1073 g / 1566 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

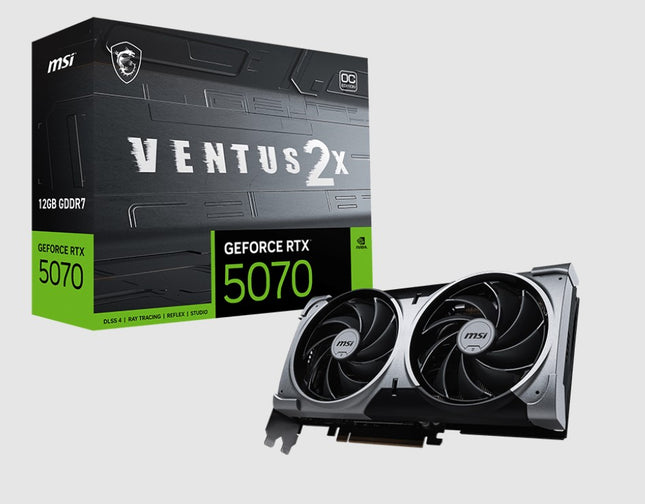

4711377308229 GeForce RTX 5070 12G VENTUS 2X OC MSI nVidia GeForce RTX™ 5070 12G GAMING TRIO OC, Boost: 2610 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G VENTUS 2X OC
Model Name G5070-12V2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 236 x 126 x 50 mm
Weight (Card / Package) TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377335768 GeForce RTX 5060 Ti 16G INSPIRE 2X OC MSI nVidia GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (emabargo)
Marketing Name GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
Model Name G506T-16I3CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 288 x 112 x 50 mm
Weight (Card / Package) 962 g / 1431 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377337618 GeForce RTX 5060 Ti 16G VENTUS 3X OC MSI nVidia GeForce RTX™ 5060 Ti 16G VENTUS 3X OC, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 16G VENTUS 3X OC
Model Name G506T-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1073 g / 1566 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377334471 GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS MSI nVidia GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 16G VENTUS 2X OC
Model Name G506T-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1073 g / 1566 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

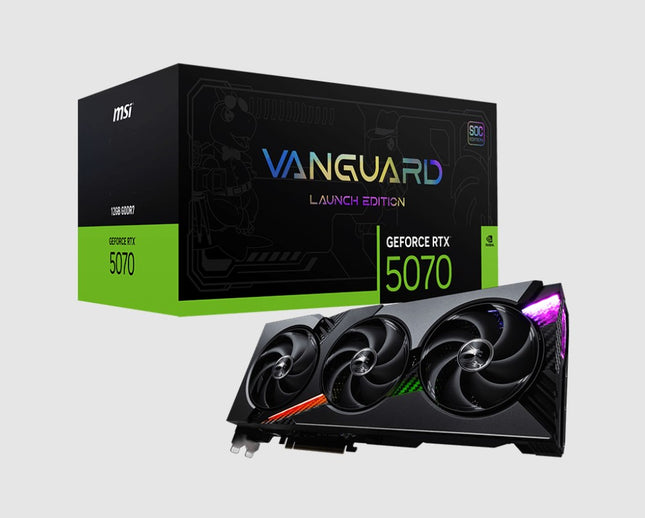

4711377303965 GeForce RTX 5070 12G VANGUARD SOC MSI nVidia GeForce RTX 5070 12G VANGUARD SOC , Boost: TBD, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1, 192-bit
Marketing Name GeForce RTX™ 5070 12G VANGUARD SOC
Model Name G5070-12VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance:
Boost:
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption TBDW
Power connectors 16-pin x 1
Recommended PSU TBDW
Card Dimension (mm) 337 x 140 x 61 mm
Weight (Card / Package) TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

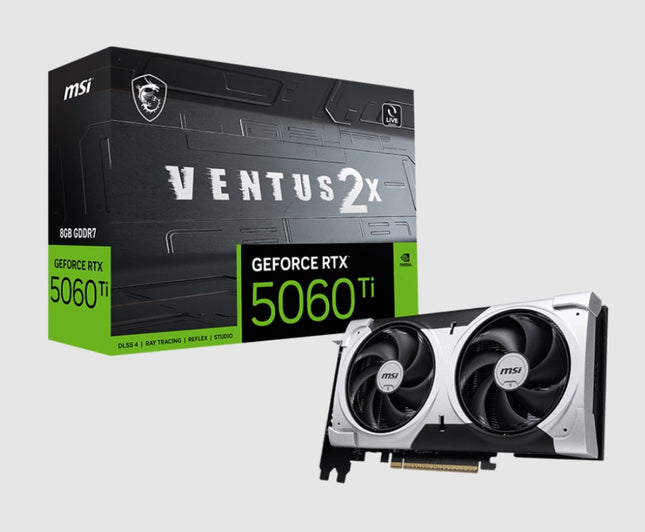

4711377338882 GeForce RTX 5060 Ti 8G VENTUS 2X PLUS MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X PLUS, PCI Express® Gen 5 x16 (uses x8), Boost: 2572 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 2X PLUS
Model Name G506T-8V2P
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2587 MHz (MSI Center)
Boost: 2572 MHz
CUDA® CORES 4608 Units
Memory Speed 28 Gbps
Memory 8 GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180W
Power connectors 8-pin x 1
Recommended PSU 600W
Card Dimension (mm) 227 x 127 x 41 mm
Weight (Card / Package) 573 g / 834 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

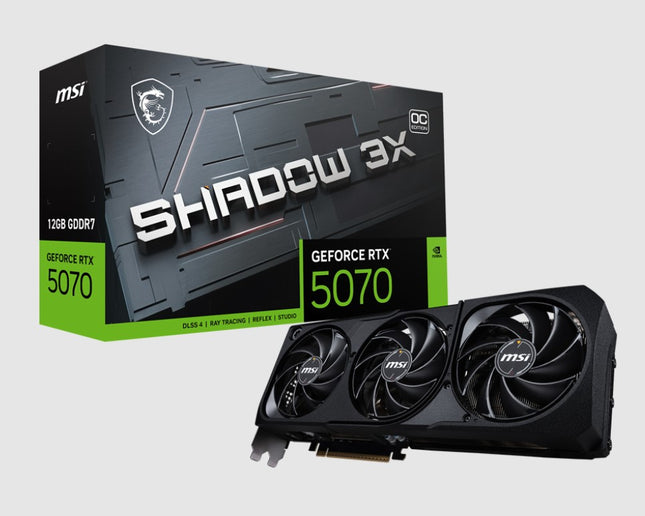

4711377308205 GeForce RTX 5070 12G SHADOW 3X OC MSI nVidia GeForce RTX™ 5070 12G SHADOW 3X OC, Boost: 2542 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G SHADOW 3X OC
Model Name G5070-12S3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) TBD g / TBD g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

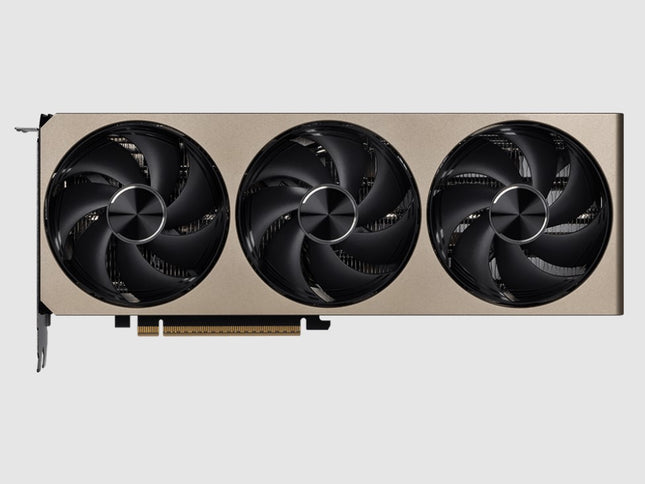

4711377292474 GeForce RTX 5080 16G INSPIRE 3X OC MSI nVidia GeForce RTX™ 5080 16G INSPIRE 3X OC, Boost: 2640 MHz, CUDA 10752 Units, 16GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5080 16G INSPIRE 3X OC
Model Name G5080-16I3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1a)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 360W
Power connectors 16-pin x1
Recommended PSU 850W
Card Dimension (mm) 288 x 112 x 50 mm
Weight (Card / Package) 950 g / 1437 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377334464 GeForce RTX 5060 Ti 16G VANGUARD SOC MSI nVidia GeForce RTX™ 5060 Ti 16G VANGUARD SOC, Boost: 2588 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 16G VANGUARD SOC
Model Name G506T-16VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2602 MHz (MSI Center)
Boost: 2588 MHz (GAMING & SILENT Mode)
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 357 x 151 x 66 mm
Weight (Card / Package) 1945 g / 2844 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

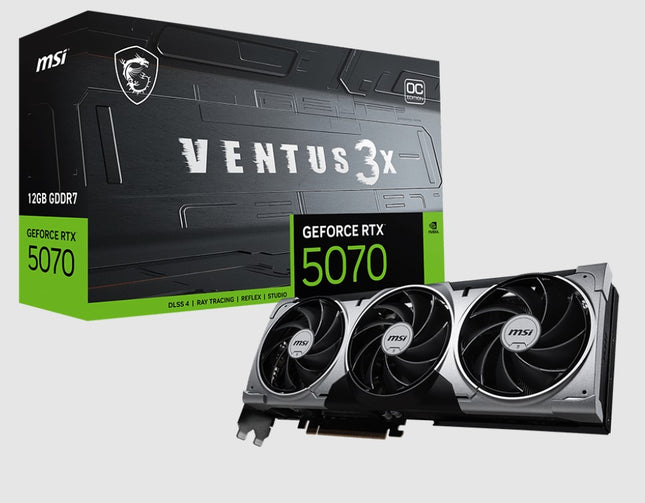

4711377308281 GeForce RTX 5070 12G VENTUS 3X OC MSI nVidia GeForce RTX™ 5070 12G VENTUS 3X OC, Boost: 2542 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G VENTUS 3X OC
Model Name G5070-12V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 302 x 121 x 49 mm
Weight (Card / Package) TBD g / TBD g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

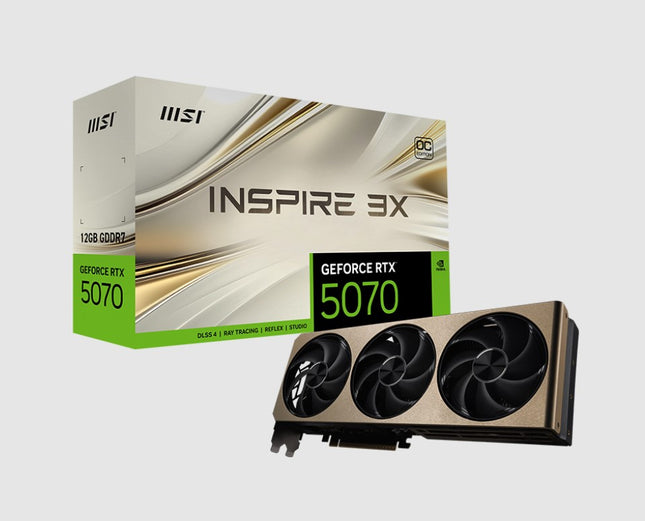

4711377308151 GeForce RTX 5070 12G INSPIRE 3X OC MSI nVidia GeForce RTX™ 5070 12G INSPIRE 3X OC, Boost: 2542 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G INSPIRE 3X OC
Model Name G5070-12I3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 288 x 112 x 50 mm
Weight (Card / Package) TBD g / TBD g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377335737 GeForce RTX 5060 Ti 16G GAMING TRIO OC MSI nVidia GeForce RTX™ 5060 Ti 16G GAMING TRIO OC, Boost: 2572 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 16G GAMING TRIO OC PLUS
Model Name G506T-16GTCP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2580 MHz (MSI Center)
Boost: 2572 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1310 g / 1833 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377301541 GeForce RTX 5070 Ti 16G GAMING TRIO OC MSI nVidia GeForce RTX™ 5070 Ti 16G GAMING TRIO OC, Boost: 2572 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 Ti 16G GAMING TRIO OC
Model Name G507T-16GTC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2580 MHz (MSI Center)
Boost: 2572 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1310 g / 1833 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4711377303927 GeForce RTX 5070 12G GAMING TRIO OC MSI nVidia GeForce RTX™ 5070 12G GAMING TRIO OC WHITE, Boost: 2610 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 12G GAMING TRIO OC
Model Name G5070-12GTC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2625 MHz (MSI Center)
Boost: 2610 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12 GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1187 g / 1705 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

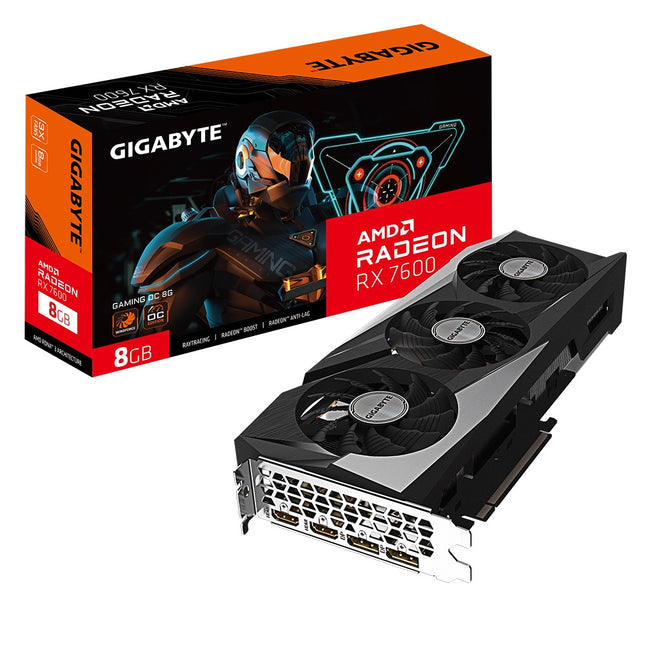

4719331313425 GV-R76GAMING OC-8GD 1.0 Gigabyte AMD Radeon RX 7600 GAMING OC-8GD 1.0 Video Card, PCI-E 4.0, 2755MHz Core Clock, 2x DP 1.4a, 2x HDMI 2.1a
Key Features:
Powered by Radeon™ RX 7600
Core Clock
Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)
Output
DisplayPort 1.4a *2
HDMI 2.1a *2
Stream Processors
2048
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Card size
L=282 W=115 H=50 mm
Recommended PSU
550W
Power Connectors
8 pin*1
Note
* “Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
4711377338868 GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)
Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 2X OC
Model Name G506T-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1073 g / 1566 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

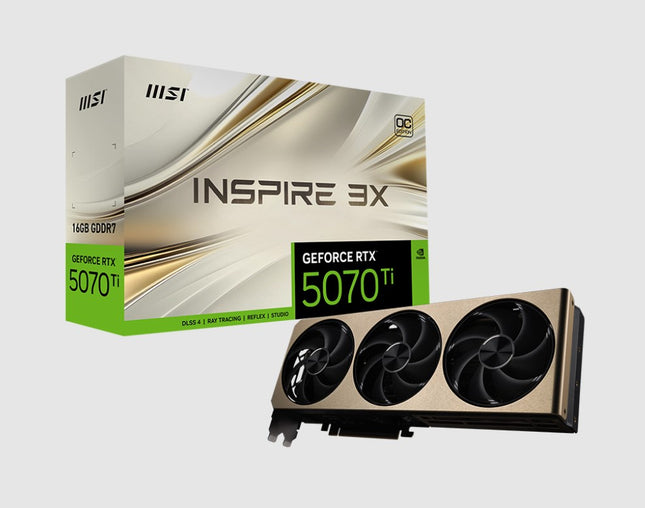

4711377317160 GeForce RTX 5070 Ti 16G INSPIRE 3X OC MSI nVidia GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC PLUS
Model Name G507T-16I3CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 288 x 112 x 50 mm
Weight (Card / Package) 962 g / 1431 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

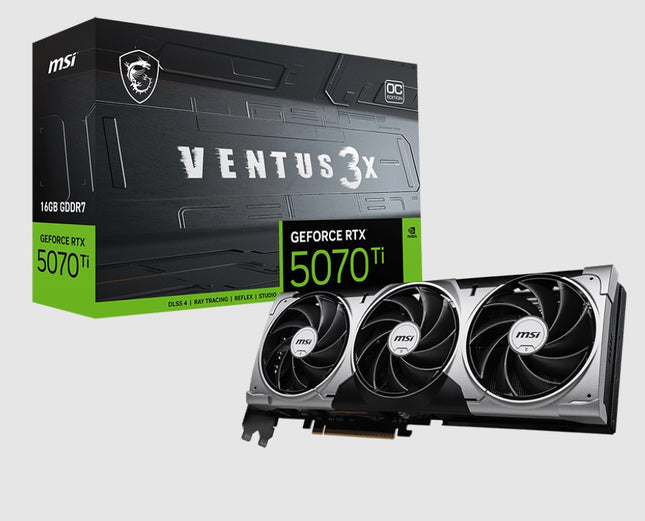

4711377301589 GeForce RTX 5070 Ti 16G VENTUS 3X OC MSI nVidia GeForce RTX™ 5070 Ti 16G VENTUS 3X OC, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5070 Ti 16G VENTUS 3X OC
Model Name G507T-16V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1073 g / 1566 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

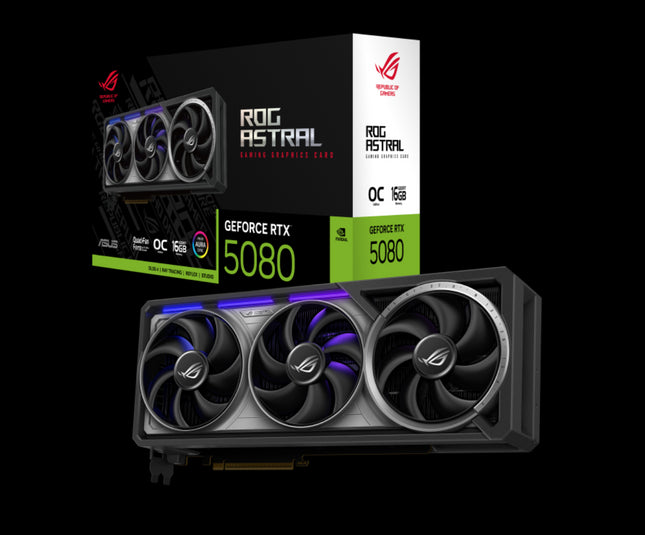

4711387837917 ROG-ASTRAL-RTX5080-O16G-GAMING ASUS nVidia GeForce ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition GDDR7 2760 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320
Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
1899 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2790 MHz
Default mode: 2760 MHz (Boost Clock)
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 76 mm
14.1 x 5.9 x 3 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.8 Slot
AURA SYNC
ARGB
AI Performance: 1899 AI TOPS
Powered by the NVIDIA Blackwell architecture and DLSS 4
OC mode: 2790 MHz (OC mode)/ 2760 MHz (Default mode)
Quad-fan design boosts air flow and pressure by up to 20%
Patented vapor chamber with milled heatspreader for lower GPU temperatures
Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans
Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting
Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
Powerful 50-amp MOSFETs with extra power phases help ensure enhanced performance, stability and higher overclocking potential
Protective PCB coating guards against moisture, dust, and extreme temperatures.
Auto-Extreme manufacturing process for precision and reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring

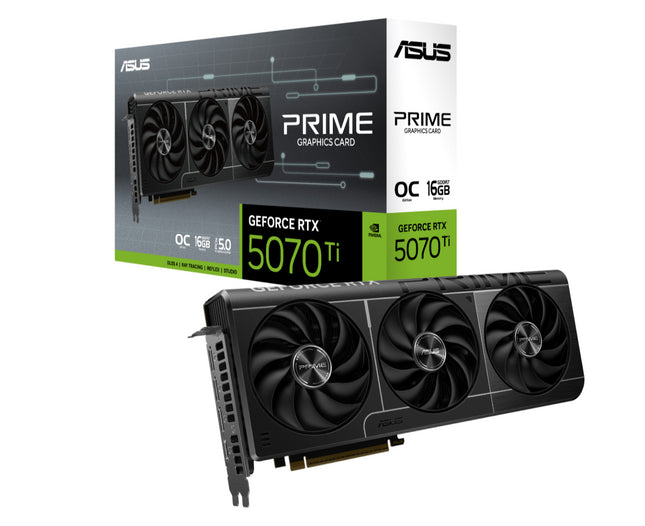

4711387861516 PRIME-RTX5070TI-O16G Model
PRIME-RTX5070TI-O16G
Graphic Engine
NVIDIA® GeForce RTX™ 5070 Ti
AI Performance
1432 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
ASUS nVidia GeForce RTX 5070 Ti PRIME-RTX5070TI-O16G RTX 5070 16GB GDDR7 2527MHz Boost Clock 28 Gbps 256-bit Digital Max Resolution 7680 x 4320
Engine Clock
OC mode: 2527MHz
Default mode: 2497MHz (Boost Clock)
CUDA Core
8960
Memory Speed
28 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
2.5 Slot
SFF Ready
Compatible
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
NVIDIA RTX SFF-ready graphics card with compatible chassisNVIDIA GEFORCE RTX LOGO, Powering Advanced AI
Cooling
2.5-slot Design
The Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

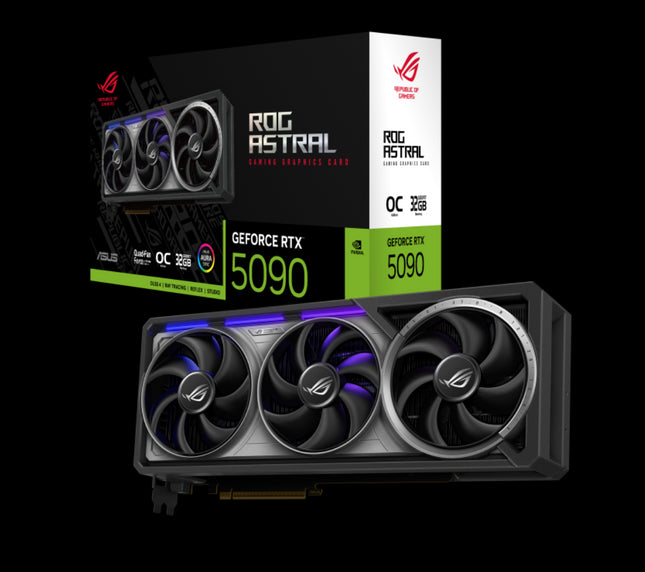

4711387890288 ROG-ASTRAL-RTX5090-O32G-GAMING ASUS nVidia GeForce ROG Astral GeForce RTX 5090 32GB GDDR7 OC Edition 2580 MHz Boost clock 28Gbps 512-bit igital Max Resolution 7680 x 4320
Tech Specs:
Graphic Engine
NVIDIA® GeForce RTX™ 5090
AI Performance
3593 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
32GB GDDR7
Engine Clock
OC mode: 2610 MHz
Default mode: 2580 MHz(Boost clock)
CUDA Core
21760
Memory Speed
28 Gbps
Memory Interface
512-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 4)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 76 mm
14.1 x 5.9 x 3 inch
Recommended PSU
1000W
Power Connectors
1 x 16-pin
Slot
3.8 Slot
AURA SYNC
ARGB
AI Performance: 3593 AI TOPS
Powered by the NVIDIA Blackwell architecture and DLSS 4
OC mode: 2610 MHz (OC mode)/ 2580 MHz (Default mode)
Quad-fan design boosts air flow and pressure by up to 20%
Patented vapor chamber with milled heatspreader for lower GPU temperatures
Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans
Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting.
Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
Powerful 80-amp MOSFETs help ensure enhanced performance, stability and higher overclocking potential
Protective PCB coating guards against moisture, dust, and extreme temperatures.
Auto-Extreme manufacturing process for precision and reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring

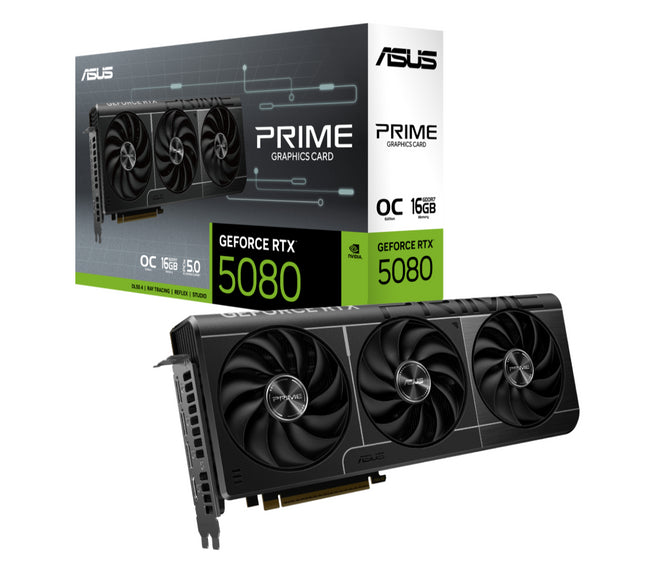

4711387837788 PRIME-RTX5080-O16G ASUS nVidia GeForce PRIME GeForce RTX™ 5080 16GB GDDR7 OC Edition 16GB GDDR7 2655 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320
Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
1827 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2685 MHz
Default mode: 2655 MHz (Boost Clock)
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
2.5 Slot
SFF Ready
Compatible
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5080, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow and vapor chamber design for supreme cooling.
4711387994207 PRIME-RTX5060TI-O8G ASUS nVidia PRIME GeForce RTX™ 5060 Ti 8GB GDDR7 OC Edition
Model PRIME-RTX5060TI-O8G
Graphic Engine NVIDIA® GeForce RTX™ 5060 Ti
AI Performance 772 TOPs
Bus Standard PCI Express 5.0
OpenGL OpenGL®4.6
Video Memory 8GB GDDR7
Engine Clock OC mode: 2647MHz
Default mode: 2617MHz (Boost Clock) CUDA Core 4608
Memory Speed 28 Gbps
Memory Interface 128-bit
Resolution Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
Maximum Display Support 4
NVlink/ Crossfire Support No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
Software ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions 304 x 120 x 50mm
Recommended PSU 550W
Power Connectors 1 x 8-pin
Slo 2.5 Slot
SFF Ready Compatible
Note * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

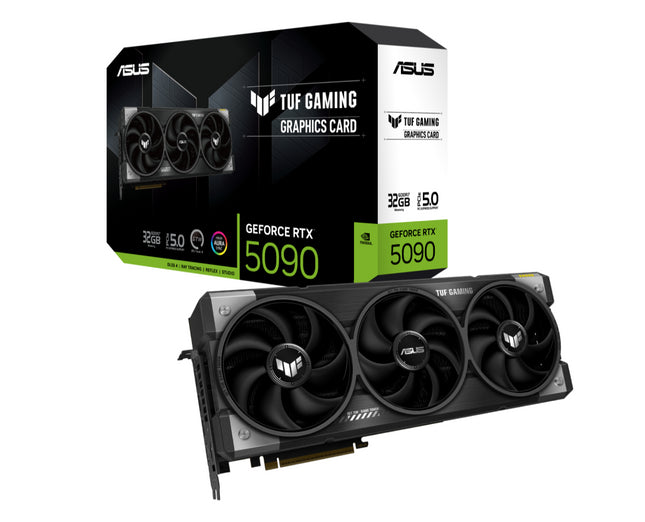

4711387890349 TUF-RTX5090-32G-GAMING ASUS nVidia GeForce TUF-RTX5090-32G-GAM 32GB GDDR7 2407 MHz Boost clock 512-bit Digital Max Resolution 7680 x 4320
TUF-RTX5090-32G-GAMING
Graphic Engine
NVIDIA® GeForce RTX™ 5090
AI Performance
3352 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
32GB GDDR7
Engine Clock
OC mode: 2437 MHz
Default mode: 2407 MHz(Boost clock)
CUDA Core
21760
Memory Speed
28 Gbps
Memory Interface
512-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 4)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
348 x 146 x 72 mm
13.7 x 5.7 x 2.8 inch
Recommended PSU
1000W
Power Connectors
1 x 16-pin
Slot
3.6 Slot
AURA SYNC
ARGB
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
4711387994306 DUAL-RTX5060TI-O16G ASUS nVidia NVIDIA® GeForce RTX™ 5060 Ti 767 TOPs
Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
AI Performance : 767 TOPs
Bus Standard: PCI Express 5.0
OpenGL: OpenGL®4.6
Video Memory: 8GB GDDR7
Engine Clock: OC mode: 2632MHz Default mode: 2602MHz (Boost Clock)
CUDA Core: 4608
Memory Speed: 28 Gbps
Memory Interface: 128-bit
Resolution:Digital Max Resolution 7680 x 4320
Interface: Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Accessories:1 x Speedsetup Manual
1 x Thank You Card
Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Recommended PSU:550W
Power Connectors: 1 x 8-pin

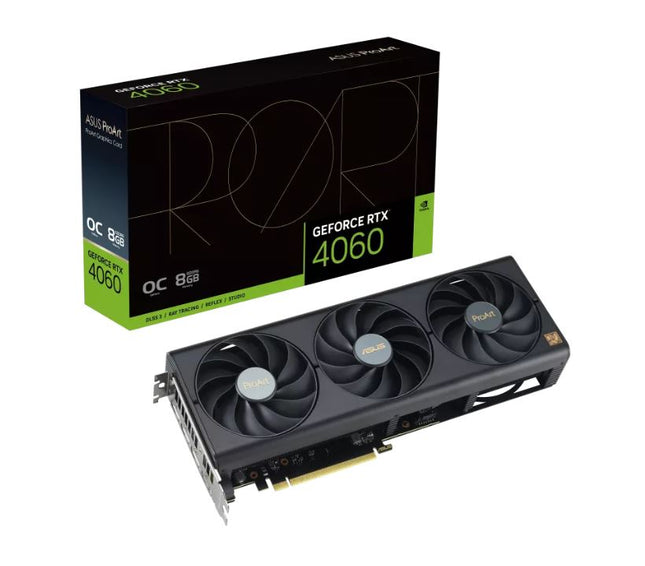

4711387299401 PROART-RTX4060-O8G ProArt GeForce RTX™ 4060 OC edition 8GB GDDR6 bring elegant and minimalist style to empower creator PC builds with full-scale GeForce RTX™ 40 Series performance.
NVIDIA Studio: RTX and AI-accelerated creator apps, exclusive AI software, and Studio Drivers for unmatched creativity and performance
NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: 2580 MHz (OC mode)/ 2550 MHz (Default mode)
Axial-tech fans scaled up for 21% more airflow
2.5-slot design: allows for greater build compatibility while maintaining premium cooling
Dual ball fan bearings last up to twice as long as conventional designs
0dB technology lets you enjoy light gaming in relative silence
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app

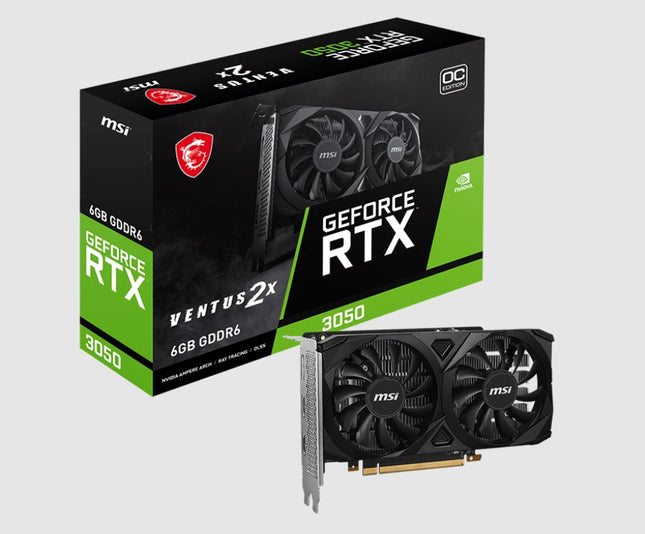

4711377176811 RTX 3050 VENTUS 2X 6G OC MSI nVidia Geforce RTX 3050 VENTUS 2X 6G OC Video Card, Boost: 1492 MHz, CUDA 2304 Units, 6GB GDDR6, HDMI™ x 2
Model Name GeForce RTX™ 3050 VENTUS 2X 6G OC
Graphics Processing Unit NVIDIA® GeForce RTX™ 3050
Interface PCI Express® Gen 4 x16 (uses x8)
Core Clocks Boost: 1492 MHz
CUDA® CORES 2304 Units
Memory Speed 14 Gbps
Memory 6GB GDDR6
Memory Bus 96-bit
Output DisplayPort x 1 (v1.4a)
HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support Y
Power consumption 70 W
Recommended PSU 300 W
Card Dimension (mm) 189 x 109 x 42 mm
Weight (Card / Package) 381 g / 610 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 3
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
4710562245165 A002FVP1 PALIT PANDORA NVIDIA JETSON ORIN NX SUPER 16GB AI 157/78 TOPS(Sparse/Dense)
CPU
NVIDIA Jetson Orin NX 16GB SUPER
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance 157 / 78 TOPS (Sparse / Dense)
System Memory 16GB 128-bit LPDDR5, total 102.4 GB/s bandwidth
Part Number A002FV1P1

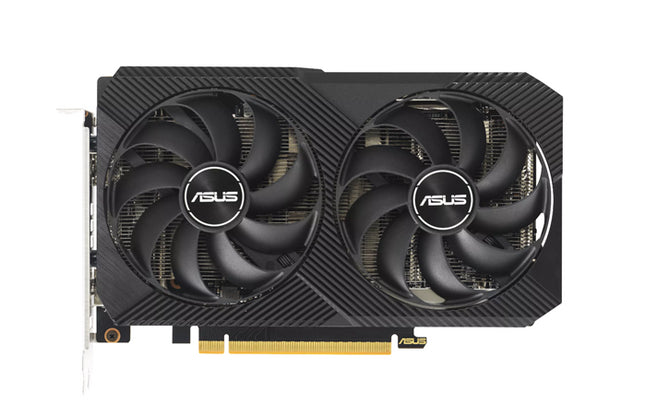

4711387678367 DUAL-RX6500XT-O4G-V2 ASUS Dual Radeon™ RX 6500 XT V2 OC Edition 4GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility
OC edition: up to 2820 MHz (Boost Clock)/up to 2670 MHz (Game Clock)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective backplate prevents PCB flex and trace damage.
Auto-Extreme technology uses automation to enhance reliability.
DUAL-RX6500XT-O4G-V2
Graphic Engine
Radeon RX 6500 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
4GB GDDR6
Engine Clock
OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)
Stream Processors
1024
Memory Speed
18 Gbps
Memory Interface
64-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
2
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch
Recommended PSU
500W
Power Connectors
1 x 6-pin
Slot
2 Slot
