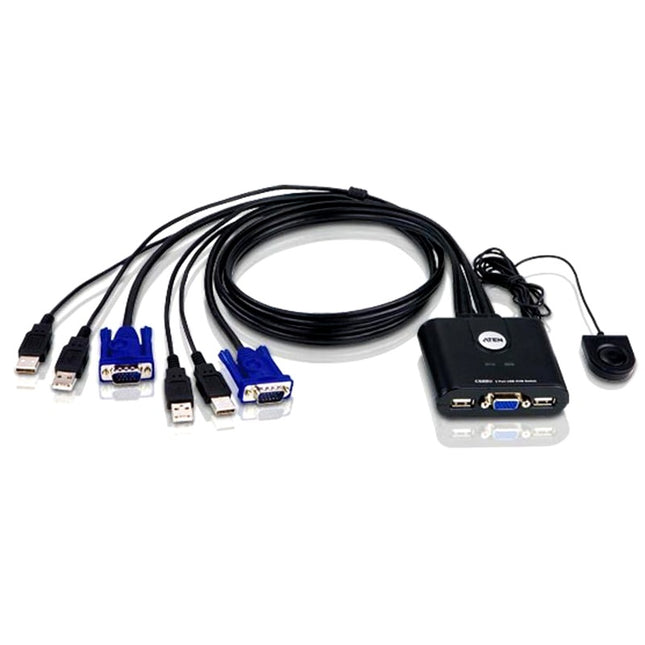

4710423775978 CS22U-AT Aten Compact KVM Switch 2 Port Single Display VGA, Remote Port Selector, USB Hot-Plugging
The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video.

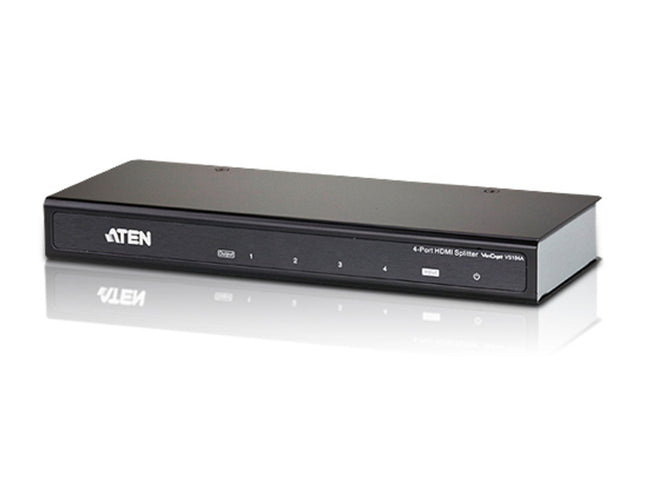

4710423779938 VS184A-AT-U The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports up to 340MHz bandwidth for high performance video
Plug-and-play – no software installation required
Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)

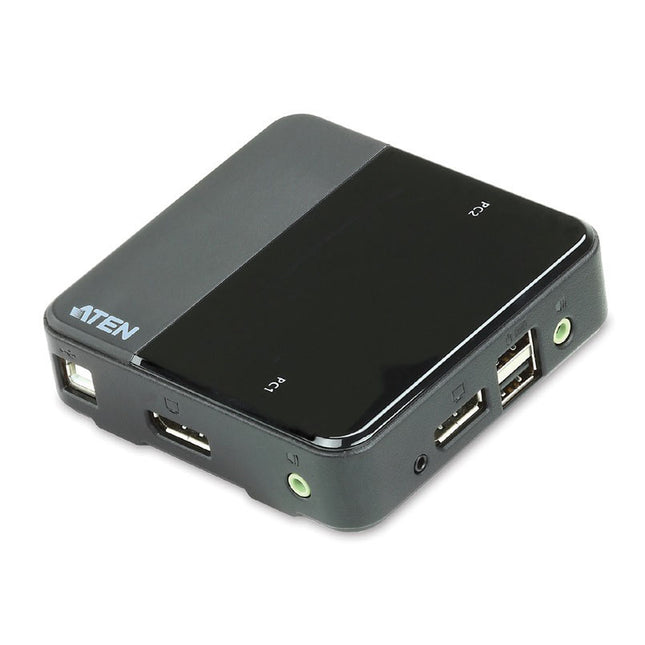

4719264643644 CS782DP-AT Aten Slim KVM Switch 2 Port Single Display DisplayPort w/ audio, Cables Included, Remote Port Selector,
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console.
Doing so with ease, the CS782DP provides three convenient switching methods – using a remote port selector, mouse, or hotkeys for fl exible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment.
With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications.

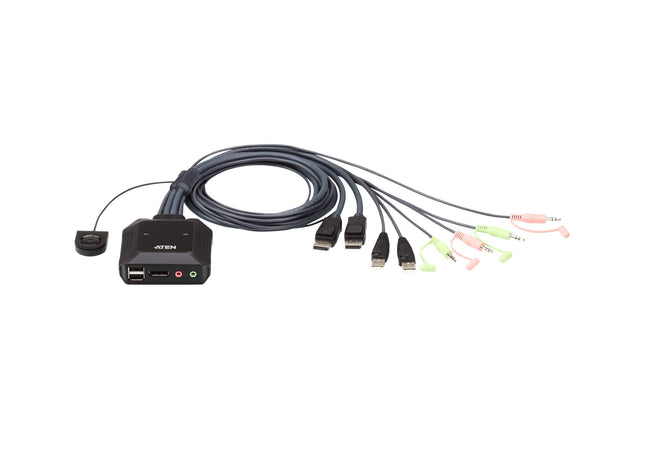

4719264645525 CS22DP-AT Aten Compact KVM Switch 2 Port Single Display Display Port w/ Audio, Remote Port Selector, USB Hot-Plugging
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
The CS22DP supports multiplatform operations allowing you to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.
It’s fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices – just plug and play.
*Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.

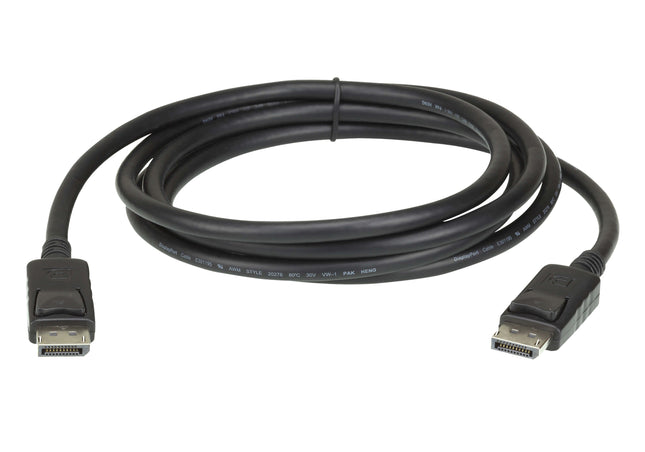

4719264640995 2L-7D02DP Aten 2m DisplayPort Cable, supports up to 3840 x 2160 @ 60Hz, 28 AWG copper wire construction for high-definition media connections
Crystal-clear video up to 4K UHD (3840 x 2160 @ 60 Hz)
28 AWG copper wire construction for high-definition media connections
Available in lengths from 2 to 5 m
deal for use with ATEN DisplayPort solutions
Physical Properties
Cable Length 2M
Cable Color Black
Cable Outer Dimension 6.5 ± 0.2mm
Conductor Gauge 30AWG
Conductor Material Tinned Copper
Connector Plating Nickel
Connector Type DisplayPort (20 pin) Male to Male
Cable Shield Type Aluminum Magnesium Alloy
Cable Jacket Type PVC
Environmental
Operating Temperature 80℃
Rating UL VW-1 (Flame rate), CSA
Package Contents
1x 2L-7D02DP 2 m DisplayPort rev.1.4 Cable

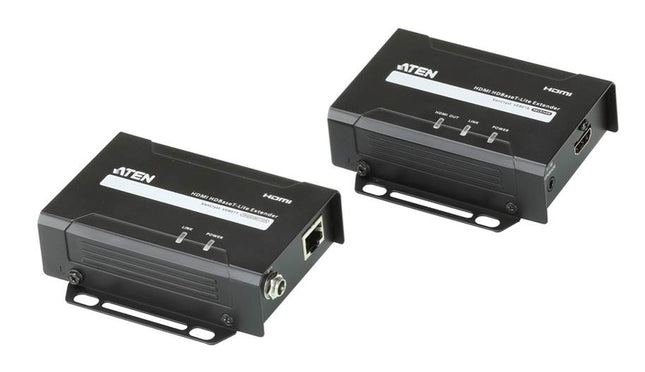

4719264642715 VE801-AT-U The VE801 HDMI HDBaseT Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

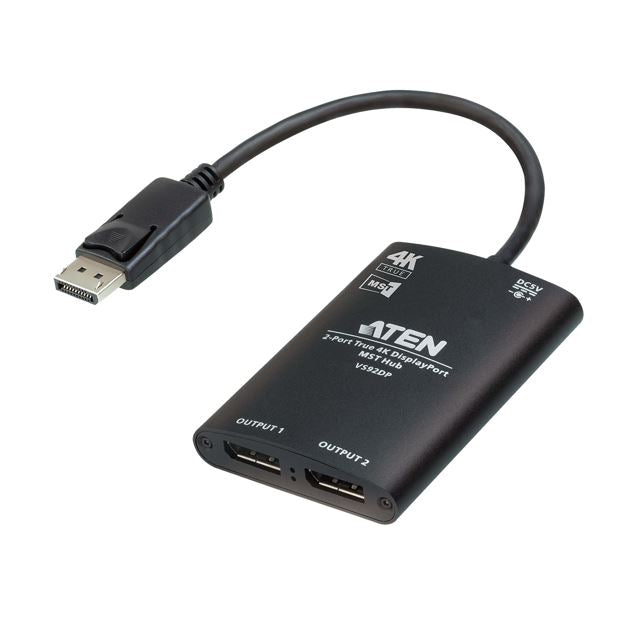

4710469340475 VS92DP-AT Designed with a cost effective, yet advanced DisplayPort MST solution in mind, the ATEN VS92DP 2-Port True 4K DisplayPort MST Hub allows the high-defi nition video to be transmitted to two different locations without losing quality. Productivity is enhanced with its feature that permits up to two displays to be connected to a Windows-based laptop / PC. Meanwhile, users can mirror the same image onto two displays or display independent content to each display for multitasking.
The VS92DP supports up to 4K@60Hz (4:4:4) video resolution, HDR Dolby TrueHD and DTS-HD Master Audio 7.1, ensuring distortionless and superb video / audio quality. It is ideal for home theater systems, commercial settings, educational centers, conference rooms, or any scenarios where high video quality is needed.
Package Content:
• 1x VS92DP 2-Port True 4K DisplayPort MST Hub
• 1x USB Type-A to USB Micro-B cable
• 1x user instructions

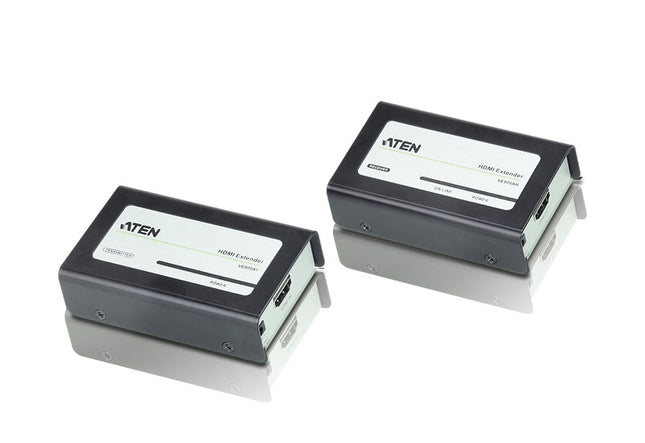

4719264642241 VE800A-AT-U •Video gain and compensation adjustable via OSD
•IR receiver for quick and easy video quality adjustment
•IR remote control for screen on/off and video adjustment at remote site
•Provide a RS-232 channel for selection**
•Follows VESA FDMI mount standard
•Supports DDC for the local monitor
•Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
1.*When combined in an installation with ATEN's VB552 (VGA Over Cat5 Repeater + Audio) can extend distance up to 450m
2.**VE200R can also be combined in an installation with the ATEN's Media Distribution Solution. Contact us for further details.

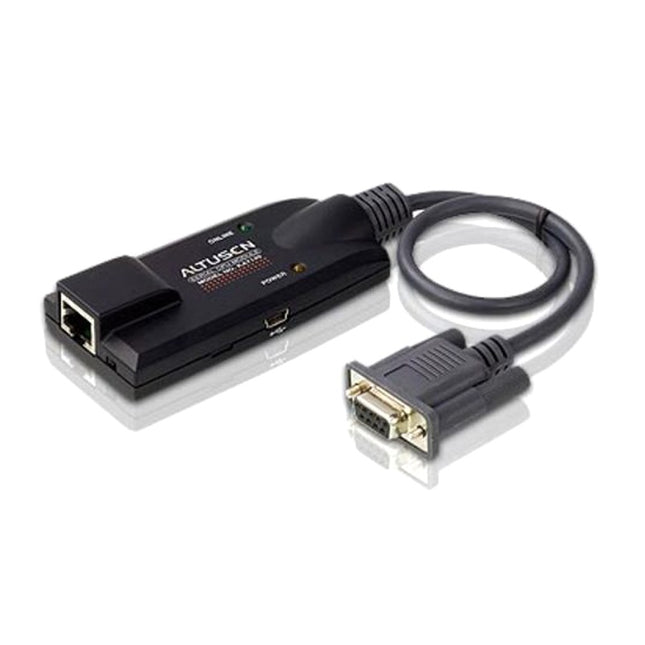

4710423775657 KA7140-AX The Altusen Serial KVM Adapter Cable connected to KVM device allows the control of serial devices through serial ports. This adapter is light and come in compact form factor, ideal for rack-mount or desktop servers.
Hot pluggable - add or remove computers without having to power down the switch
Support VT100
Support up to 300m signal transmission
Lifetime firmware upgrades
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial)
Compact size
Compatible With Below:
KL1108V, KL1116V, KM0532, KM0932, KN1108VA, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v

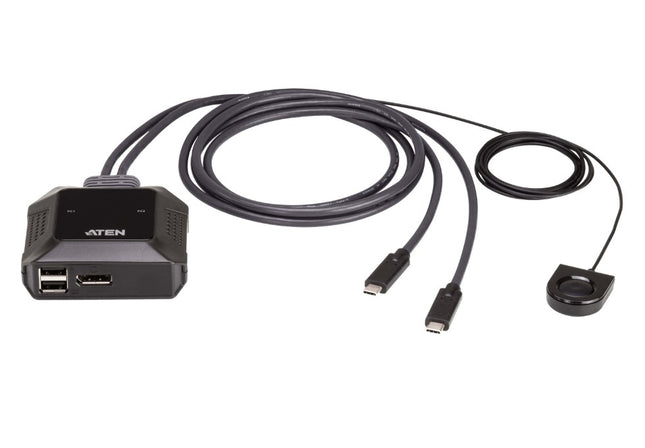

4710469341908 US3312-AT One KVM switch allows for easy control and fast switch between two USB-C devices from a single set of keyboard, mouse, and monitor
Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4)
Supports Video DynaSync™ – ensures that windows opened on an extended desktop will not revert to their default configurations on the main display
Supports two USB and one DisplayPort downstream ports for USB peripheral sharing

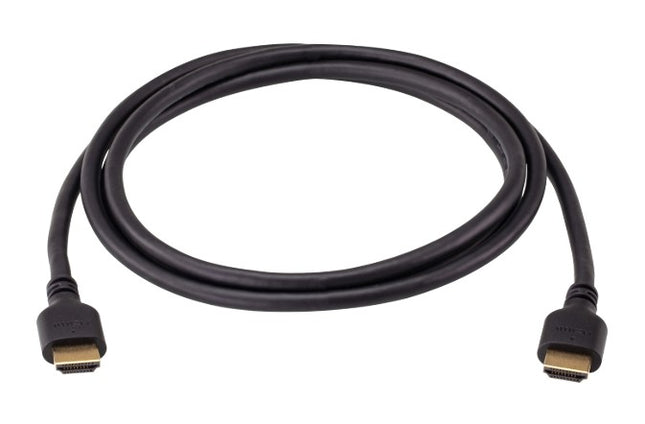

4710469342363 2L-7D02H21 Aten 1.8 m Ultra High Speed HDMI Cable
Supports resolutions and refresh rates up to 8K @ 60 Hz and 4K @ 120 Hz
Up to 48 Gbps high transmission speed allows for uncompressed, high bandwidth dependent content transmission
Supports Dynamic HDR, 3D, VRR , ALLM, Ethernet, eARC, 32 audio channels, and up to 1536 KHz sampling rates
Robust mechanical design with premium tinned copper wire

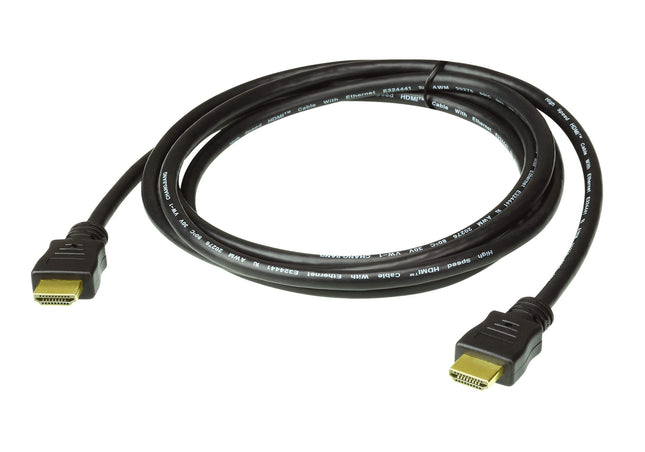

4719264641008 2L-7D02H-1 Aten 2M High Speed HDMI Cable with Ethernet. Support 4K UHD DCI, up to 4096 x 2160 @ 60Hz. High quality tinned copper wire to resist interference.Gold-plated connectors
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality – up to True 4K (4096 x 2160 @60Hz)
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 20 m

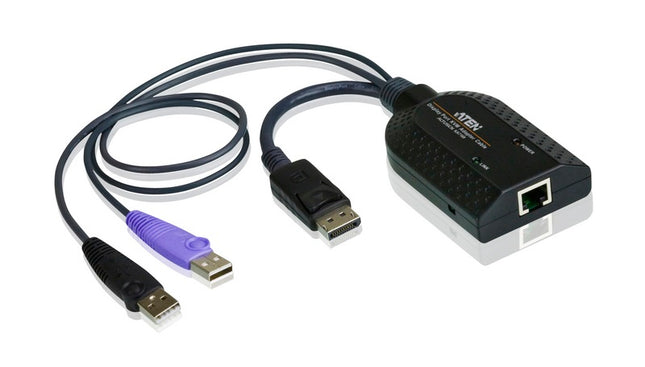

4719264640131 KA7169-AX The KA7169 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. The KA7169 supports a DisplayPort connection and provides a USB plug to connect a target computer for Smart Card/CAC support*. With its small size and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew technologies for greatly enhanced video quality.
* Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
Note:
(1) Currently, there is a compatibility issue between KA7169 and Intel® HD/UHD Graphics 630.
If you are planning to use KA7169 on a system with Intel® HD/UHD Graphics 630, we strongly recommend that you choose our KA7168 solution with a converter solution below instead.
1. For systems with DP++ support, choose KA7168 with VC985 converter.
2. For systems without DP++ support, choose KA7168 with VC986 converter.
Compatible With Below:
KH1508A, KH1508Ai, KH1516A, KH1516Ai, KH1532A, KH2508A, KH2516A, KL1108V, KL1116V, KL1508A, KL1508Ai, KL1516A, KL1516Ai, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM464V, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v

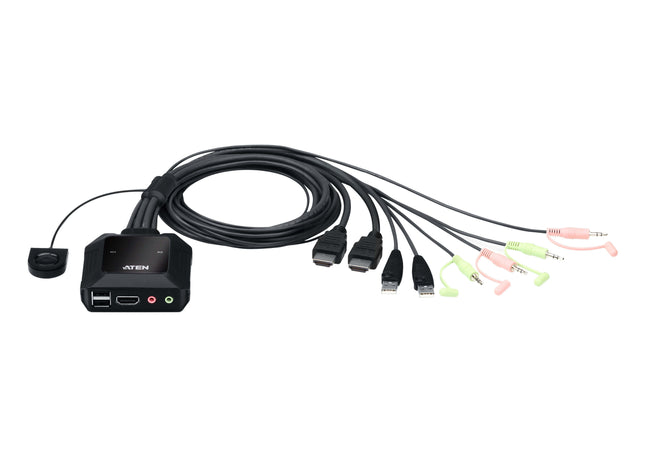

4710469340468 CS22H-AT For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.
The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.
When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.
Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.
One USB keyboard, mouse and one HDMI monitor control two HDMI computers
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via remote port selector
HDMI compliant; HDCP 2.2 compliant
Supports USB hot-plugging
The console USB ports can be used for USB peripheral sharing1
Multiplatform support – Windows, Mac and Linux
Hook design for space-saving and organized workstation
Plug and play
Bus-powered – no external power adapter required
Note: 1. The CS22H may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

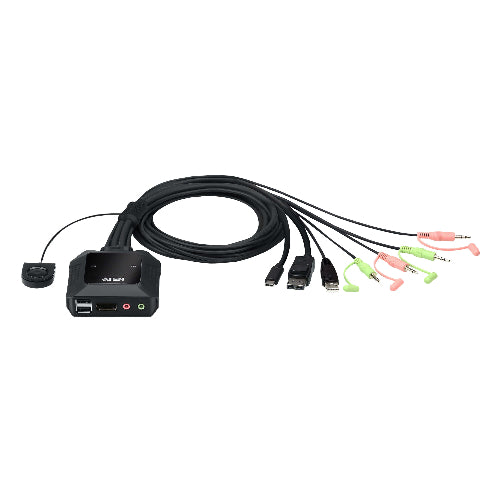

4710469341311 CS52DP-AT The CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch is a control unit that allows access to a USB-C device and a DisplayPort computer. With the CS52DP, you can quickly and effortlessly switch between two computers by using a convenient remote port selector pushbutton.
The compact CS52DP also brings in vivid 4K viewing quality to lift up work performance. Further advanced features of the CS52DP include the bus-powered mode and no need to install software or configure device. This plug and play switch is ideal for people who need quick control to multitask between a computer and a USB-C device on a desktop in any environment. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.
Computer Connections
2
Port Selection
Remote Port Selector
Connectors
Console Ports
1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM (Computer) Ports
CPU1:
1 x DisplayPort Male
1 x USB Type A Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
CPU2:
1 x USB Type C Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
Power (Optional)
1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Video
Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption
DC5V:0.74W:8BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.30 kg ( 0.66 lb )
Dimensions (L x W x H)
8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
4719264641107 2L-7D20H Aten 20m High Speed HDMI Cable with Ethernet, supports up to 4096 x 2160 @ 30Hz, High quality tinned copper wire to resist interference with Gold-plated connectors
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality – up to 4K (4096 x 2160 @30Hz)
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 20 m
Max. Video Resolution 4960x2160@30Hz
Physical Properties
Cable Length 20M
Cable Color Black
Cable Outer Dimension 10.0 ± 0.20mm
Conductor Gauge 26AWG
Conductor Material Tinned Copper
Connector Plating Gold
Connector Type HDMI (19pin) Male to Male
Cable Shield Type Aluminum Foil
Cable Jacket Type PVC
Environmental
Operating Temperature 80℃
Rating UL VW-1 (Flame rate), CSA
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

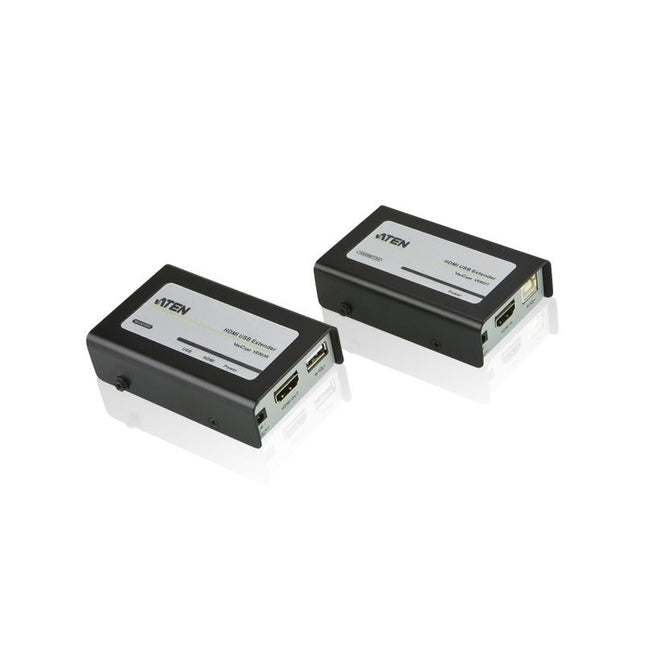

4710423779716 VE803-AT-U The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.
4719264641084 2L-7D10H Aten 10M High Speed HDMI Cable with Ethernet. Support 4K UHD DCI, up to 4096 x 2160 @ 30Hz. High quality tinned copper wire to resist interference.Gold-plated connectors
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality – up to 4K (4096 x 2160 @30Hz)
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 20 m

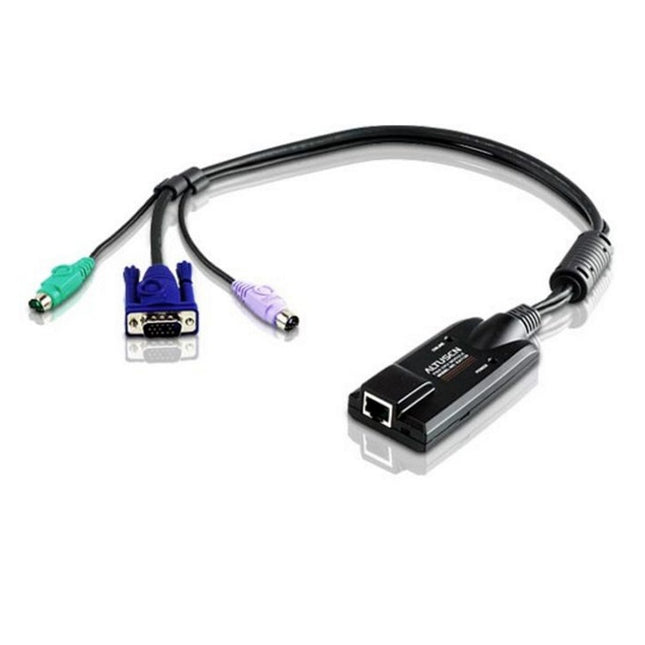

4710423775862 KA7120-AX The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer OS types (Windows, Mac, Sun)
Compact size
* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.
Compatible With Below:
KH1508A, KH1508Ai, KH1516A, KH1516Ai, KH1532A, KH2508A, KH2516A, KL1108V, KL1116V, KL1508A, KL1508Ai, KL1516A, KL1516Ai, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM464V, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v

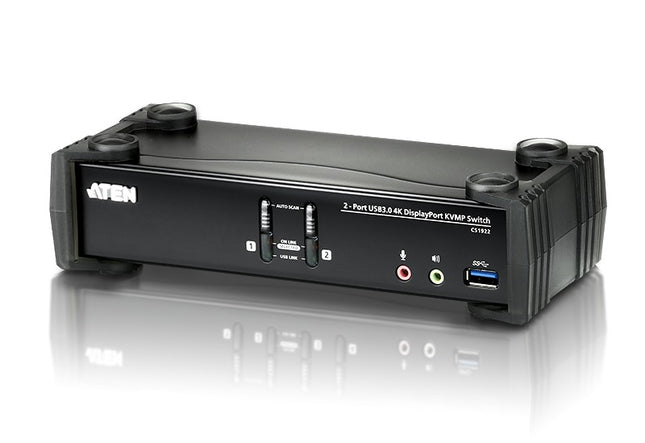

4719264644764 CS1922-AT-U Aten Desktop KVMP Switch 2 Port Single Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
4719264641039 2L-7D03H Aten 3M High Speed HDMI Cable with Ethernet. Support 4K UHD DCI, up to 4096 x 2160 @ 60Hz. High quality tinned copper wire to resist interference.Gold-plated connectors
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality – up to True 4K (4096 x 2160 @60Hz)
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 20 m

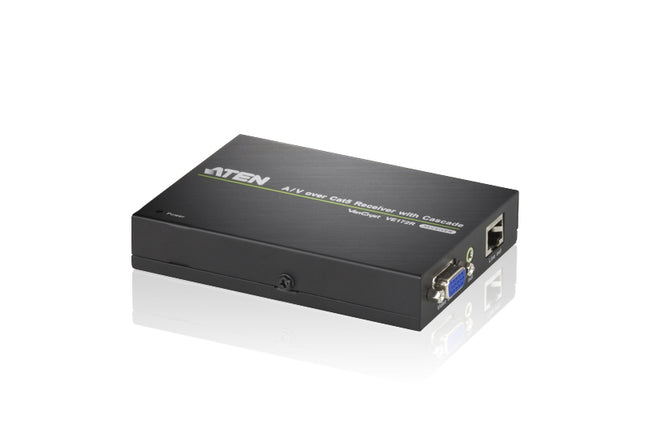

4710423779891 VE172R-AT-U ATEN VE-172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS-1204T/VS-1208T, VE-170T/VE-170R/VE-170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m. Compatible Transmitter Units: VE-170T A/V Over Cat 5 Transmitter VS-1204T A/V Over Cat 5 Transmitter VS-1208T A/V Over Cat 5 Transmitter Compatible Receiver Units: VE-172R A/V Over Cat 5 Receiver with Cascade VE-170R A/V Over Cat 5 Receiver VE-170RQ A/V Over Cat 5 Receiver with Deskew
