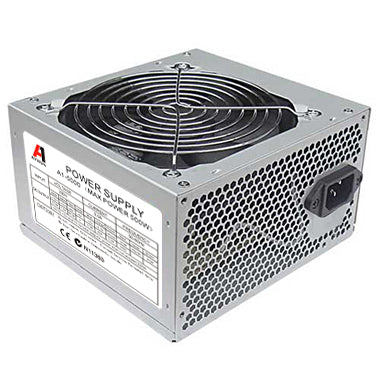

PSA1-5000 A1-5000-E Aywun 500W,12cm fan, 20+4 pins with cable sleeving, 1x( P4+P4), 4x SATA, 2x Molex, 1x Small 4-pins,1x 6-PIN PCI-Express VGA.
Retail Packaging. Two Years Warranty.
• Features:
• Excellent Value for Money
• Sleeve Bearing Fan for quiet operation and system heat dissipation
• Reliable with Two Years Peace of Mind warranty
• 20+4 PIN ATX with cable sleeving, 1x( P4+P4) EPS, 1x 6-PIN PCI-Express VGA, 4x SATA, 4x Molex
Carton Qty: 6pcs/Box
Dimension: 15 x 14 x 8.6 CM
Product image for illustration purpose. Actual Product may vary and subject without notice.

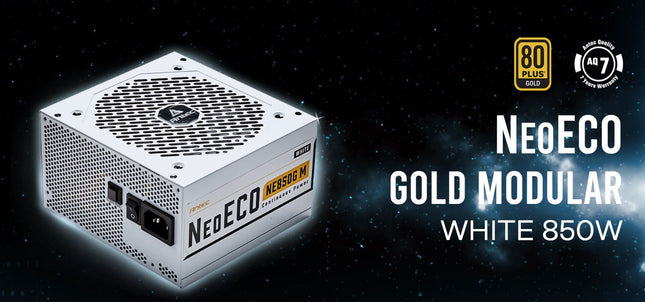

761345112314 NE850G M White AU he brand-new NeoECO Gold Modular White series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills
850G Pro Specification:
• 850W Continuous Power™ - Guaranteed 850W of Continuous Power™ from Antec
• 80 PLUS® Gold certified-Up to 92% efficient, to reduce your electricity bill
• AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support
• 120 mm Silence - Whisper-quiet high-quality fan with long lifetime
• Fully--Modular cable management - Improves airflow and reduces clutter
• 99% +12V - Output for maximum CPU & GPU support
• Japanese Heavy-Duty Caps- High-performance capacitors ensure DC stability and regulation
• 4 x PCI-E connectors for multiple GPU support
• ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
• PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• ErP Lot 6: 2013 - Compliant to the toughest energy standard available
• CircuitShield™-
Full suite of industrial grade protections:
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Under Voltage Protection (UVP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)

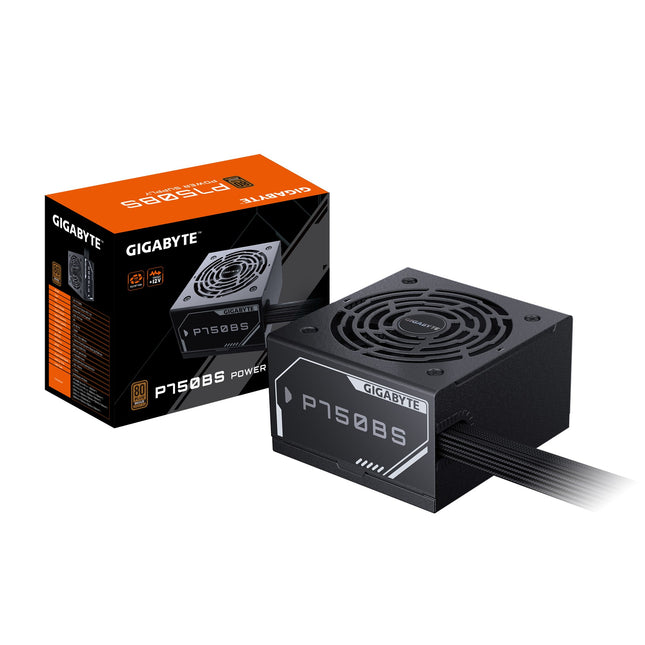

4719331555269 GP-P750BS Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan >100,000 hours, 3 years warranty
Model GP-P750BS
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 200-240 Vac
Input Current 6A
Input Frequency 60-50 Hz
Output Capacity 750W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 Bronze (230V EU)
Efficiency 88% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1

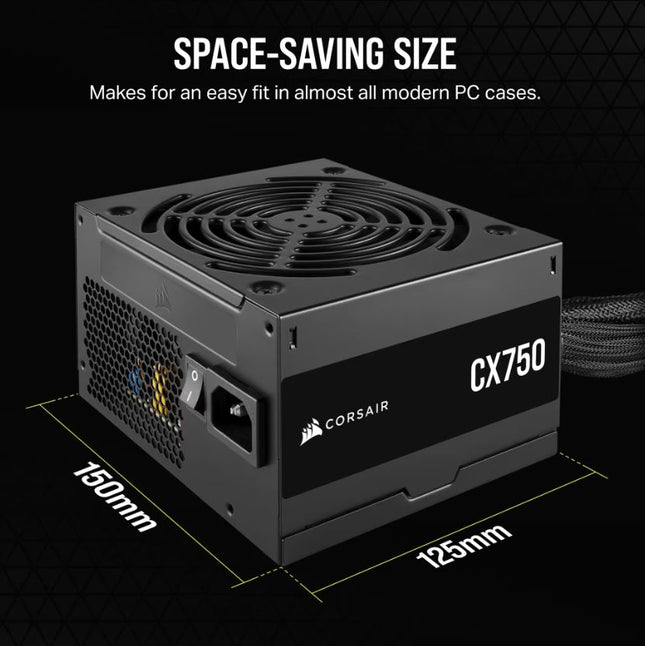

840006670988 CP-9020279-AU CX Series™ CX750 – 750 Watt 80 PLUS Bronze ATX Power Supply (AU)
CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.
80 PLUS Bronze efficiency up to 88%
Guaranteed continuous power
120mm low-noise cooling fan
Compact 125mm length

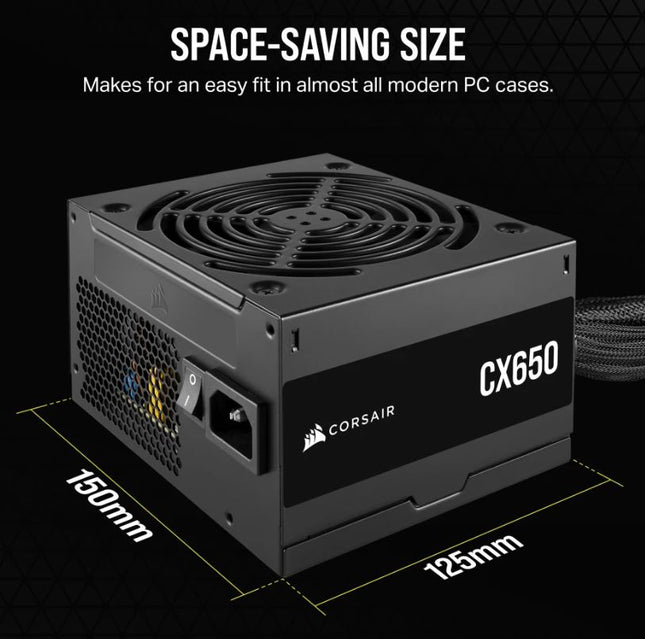

840006670865 CP-9020278-AU CX Series™ CX650 – 650 Watt 80 PLUS Bronze ATX Power Supply (AU)
CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.
80 PLUS Bronze efficiency up to 88%
Guaranteed continuous power
120mm low-noise cooling fan
Compact 125mm length

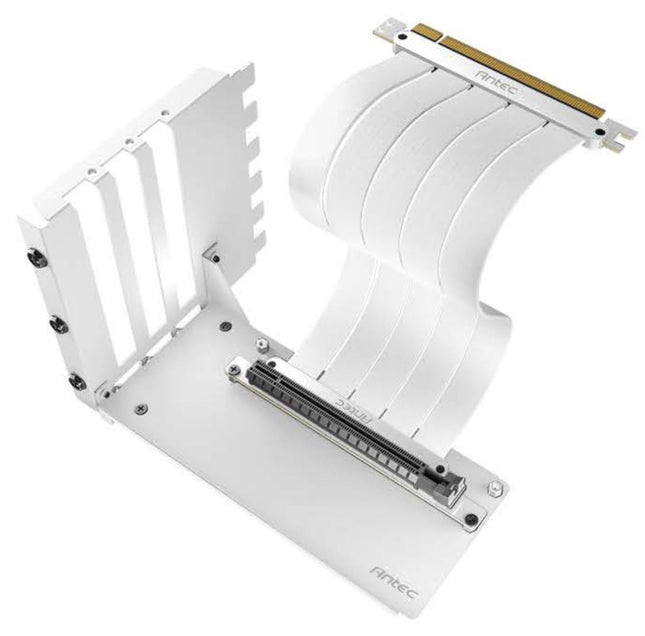

761345777148 AT-RCVB-W200-PCIE4 PCI-E 4.0 190mm Expansion Cable. With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ RTX4050/AMD 6000 series.

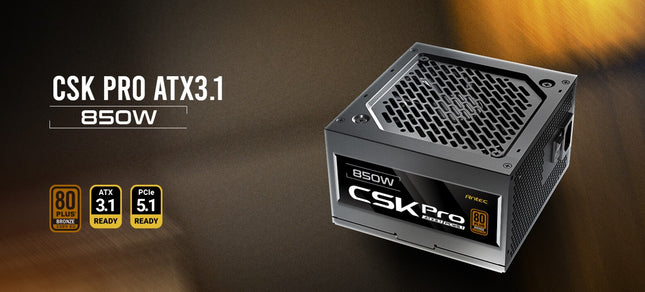

761345200707 CSK850 PRO AU Antec CSK850 PRO AU 80 Plus® Bronze Certified
Introducing our CSK Pro ATX3.1 semi-modular power supply, designed with quality, efficiency, and performance. The CircuitShieldTM suite of industrial-grade protections ensure the power delivered to your system is safe and reliable in any environment. Advancing with ATX 3.1 & PCIe 5.1 compatibility, featuring 80 PLUS® BRONZE certification, and coming with Antec’s 5-year warranty, CSK Pro ATX3.1 provides you the impressive price-performance ratio.
ATX 3.1 & PCIe 5.1 Compatible
Our new CSK Pro ATX3.1 power supplies are certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance. The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, ensuring the safety and reliability of your power supply in any situation.
Features
Semi-Modular
Latest GPU Standard and future proof
Whisper Quiet
Thermal Manager
Compact Size
Semi-Modular
24pin ATX MB x 1
16PIN PCI-E 5.1 12V-2x6 (600w) x 1
PCI-E 8PIN (4+4) x 2
PCI-E 8PIN (6+2) x 4
SATA x 6
Molex X 3
5-Year Warranty
Antec commits a 5-year warranty and offers our quality tech support and customer servi

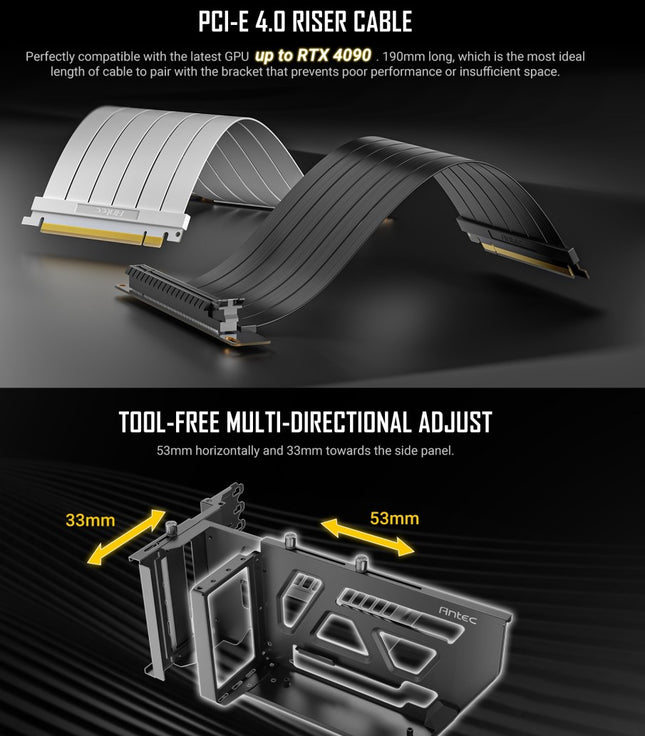

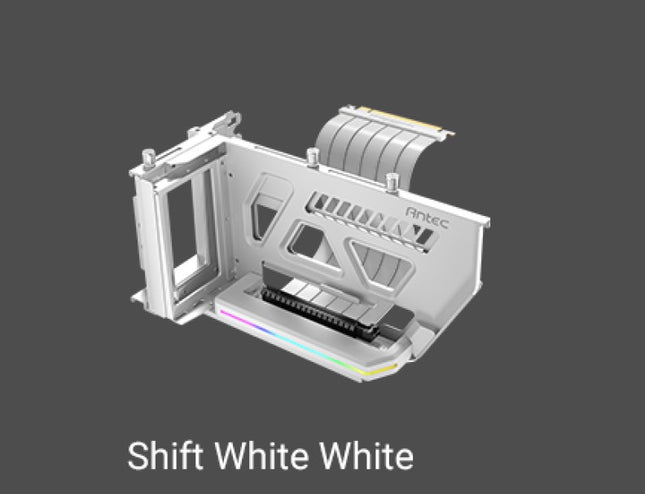

761345778008 AT-ARCVB-W190-PCIE4-RTX40 PCI-E 4.0 190mm Expansion Cable. With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 4.0 / 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ Assumed RTX4050/AMD 6000 series.+ RTX 4090 series
Compatible Case: Antec Performance 1 FT, Constellation Range / P20C / DP / DF series

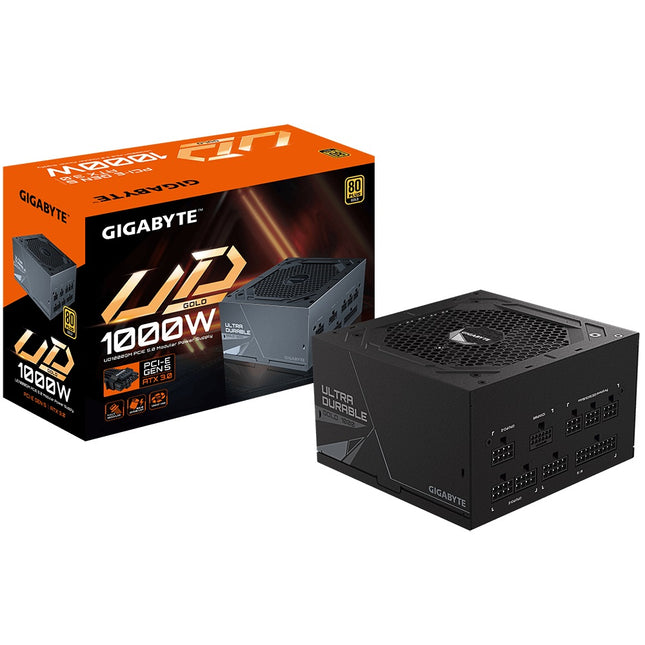

4719331553241 GP-UD1000GM PG5 2.0 Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)
SPECIFICATION:
Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
840006676287 CP-9020284-AU CORSAIR SF Series SF750 Fully Modular 80 PLUS Platinum SFX Power Supply (AU)
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Includes
80 PLUS Platinum rated efficiency
ATX 3.1 compliant, supporting PCIe 5.1
Fully modular, Type-5 Micro-Fit PSU connectors
92mm PWM cooling fan with Zero RPM mode
Tech Specs
Cybenetics Efficiency Platinum
Cybenetics Noise A-
ATX Connector 1
ATX12V Version 3.1
Cable Type Type 5
Continuous Power W 750 Watts
EPS Connector 2
Fan Bearing Technology Fluid Dynamic Bearing
Fan Size MM 92mm
Multi GPU Ready Yes
SATA Connector 3
PATA Connector 1
Modular Fully
PCIe Connector 2
MTBF Hours 100,000 hours
PSU Form Factor SFX
Zero RPM Mode Yes
80 PLUS Efficiency Platinum
Warranty 7 Year
Weight 2.15

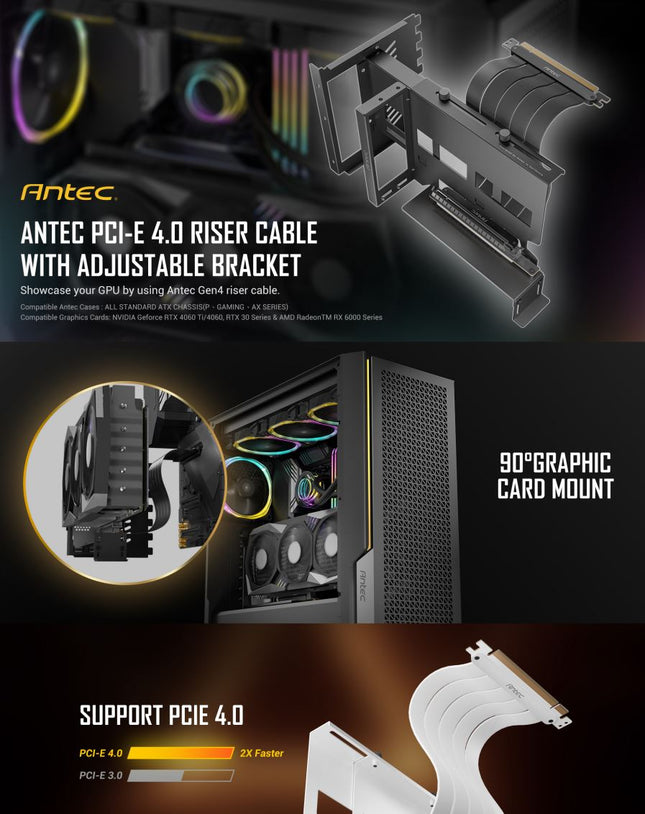

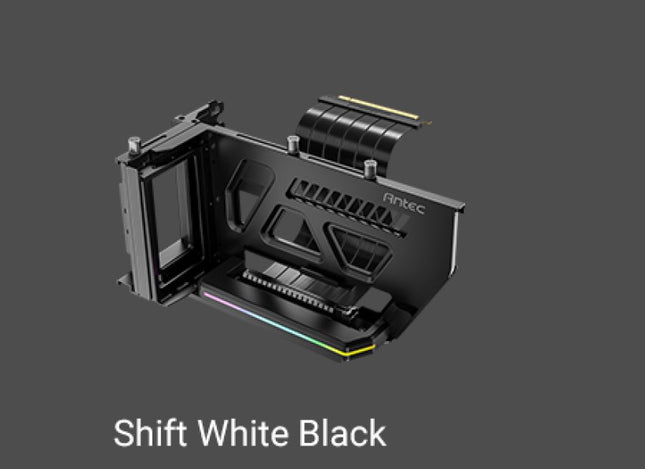

761345778015 AT-ARCVB-BK190-A-PCIE4-RTX40 PCI-E 4.0 190mm Expansion Cable. RGB LED Lightning Effect
With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 4.0 / 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ Assumed RTX4050/AMD 6000 series. RTX 4090
Compatible Case: Antec Performance 1 FT, Constellation Range / P20C / DP / DF series

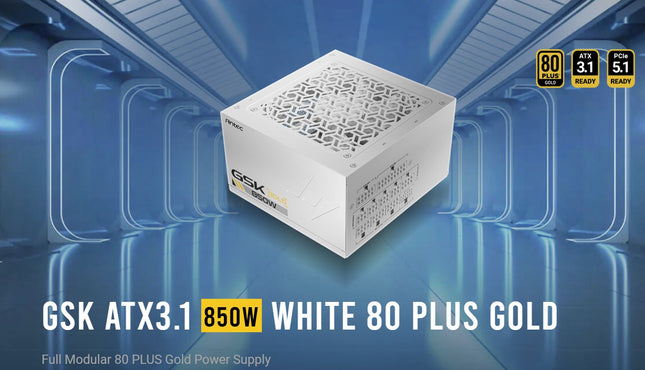

761345200950 GSK850 White AU Antec GSK850-AU 80+ Gold Fully Modular PSU
Introducing our GSK ATX 3.1 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect brilliant performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet cooling. The power supply is also 100% modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The GSK ATX3.1 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.

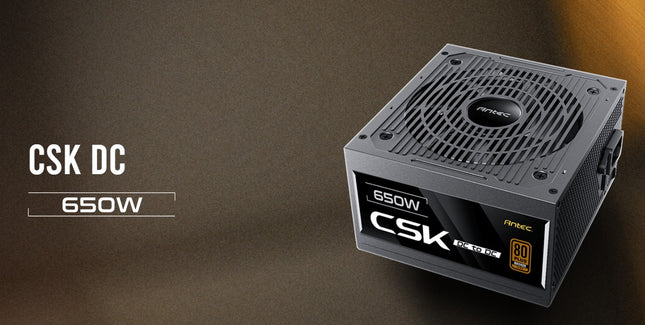

761345201063 CSK650DC Antec’s new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK DC series includes Antec’s solid 5-year warranty. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment
Model CSK650DC
Safe Model X5000A535XC-24
Type ATX 12V 2.52
Dimension 140(L)*150(W)*86(H)
Modular Non-Modular
Warranty 5 years
Input Voltage 100V-240V
Input Current 12A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 650W
Operation Temperature 0~40°C
Regulatory cTUVus / TUV / CB / RCM / CE / FCC
/ BSMI / KC / UKCA / ICES/BIS
Fan 120mm Silent Fan
Certifications 80 Plus Bronze
Connector 1 x 24(20+4)pin MB
2 x 8(4+4)pin CPU
2 x 8(6+2)pin PCI-E
6 x SATA
3 x Molex
Unit Box Dimensions 255mm(L)*195mm(W)*100mm(H)
Shipping Box Dimensions 545mm(L)*425mm(W)*230mm(H)
Net Weight 1.70KG
Gross Weight 1.90KG

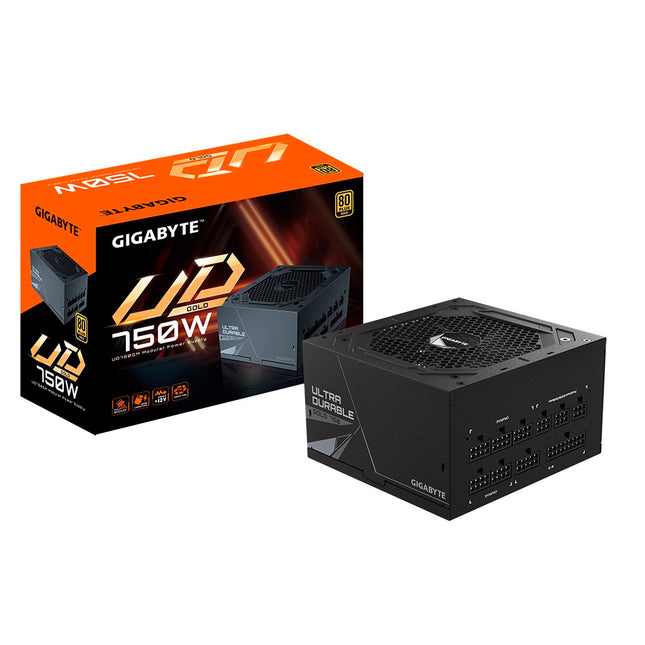

4719331552688 GP-UD750GM Gigabyte UD750GM 750W ATX PSU Power Supply 80+ Gold >90% Black Flat Cables Single +12V Rail Japanese >100K Hrs
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design
5 years warranty (Adjusted according to different regions)

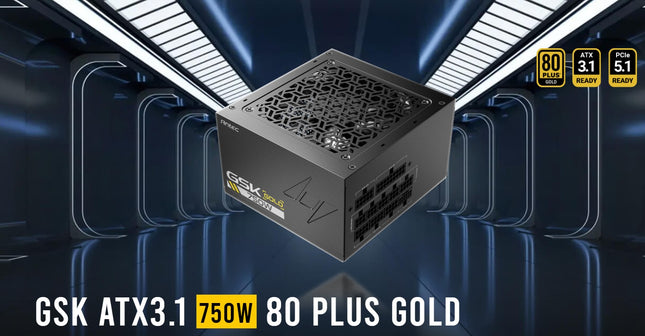

761345200578 GSK750 AU Introducing our GSK ATX3.1 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect brilliant performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet cooling. The power supply is also 100% modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The GSK ATX3.1 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.
761345777193 AT-ARCVB-W200-PCIE4 With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ Assumed RTX4050/AMD 6000 series.

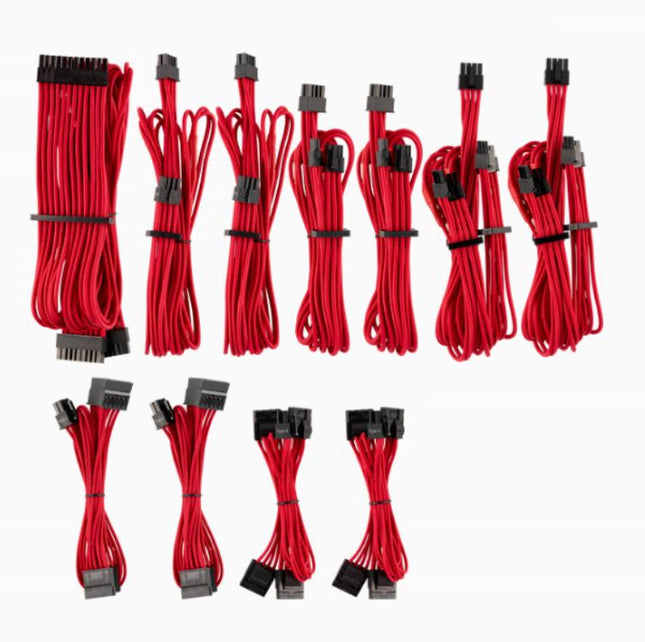

843591079587 CP-8920223 The CORSAIR Premium Individually Sleeved Type 4 Gen 4 Pro Kit includes everything you need to fully upgrade your PSU cables to flexible paracord sleeve, available in seven different colors and pattern
Triple-layer mesh paracord sleeved cables provide easy cable routing and stylish aesthetics. Available in seven different colors and patterns
Pre-installed 24-pin and 8-pin cable combs give your system a professional look in seconds.
In-line capacitors on the ATX 24-pin, EPS12V and PCIe cables ensure clean voltage delivery and stable power.
FULLY COMPATIBLE
Guaranteed for use with all Type 4 CORSAIR PSUs. To see if your PSU is compatible, check out our PSU Cable Compatibility List.
https://www.corsair.com/ww/en/psu-cable-compatibility

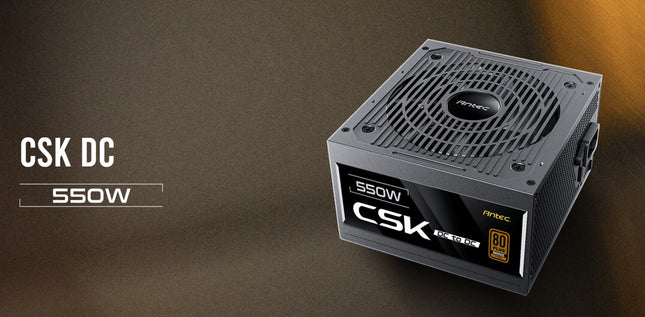

761345201018 CSK550DC Antec’s new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK DC series includes Antec’s solid 5-year warranty. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment.
Model CSK550DC
Safe Model X5000A533XC-24
Type ATX 12V 2.52
Dimension 140(L)*150(W)*86(H)
Modular Non-Modular
Warranty 5 years
Input Voltage 100V-240V
Input Current 12A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 550W
Operation Temperature 0~40°C
Regulatory cTUVus / TUV / CB / RCM / CE / FCC
/ BSMI / KC / UKCA / ICES/BIS
Fan 120mm Silent Fan
Certifications 80 Plus Bronze
Connector 1 x 24(20+4)pin MB
2 x 8(4+4)pin CPU
2 x 8(6+2)pin PCI-E
6 x SATA
3 x Molex
Unit Box Dimensions 255mm(L)*195mm(W)*100mm(H)
Shipping Box Dimensions 545mm(L)*425mm(W)*230mm(H)
Net Weight 1.60KG
Gross Weight 1.90KG

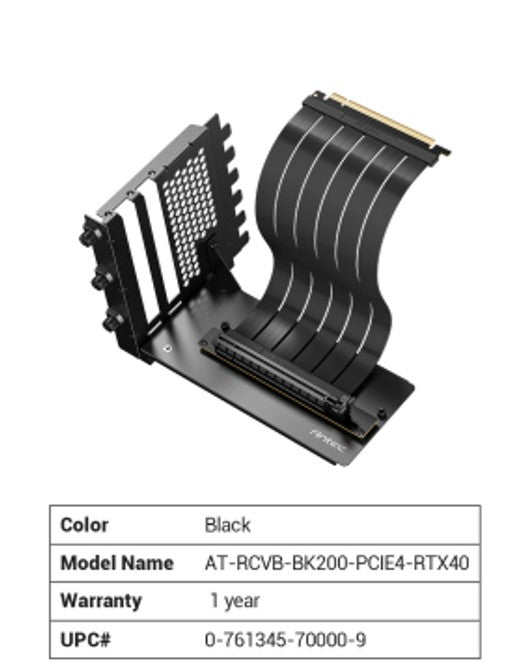

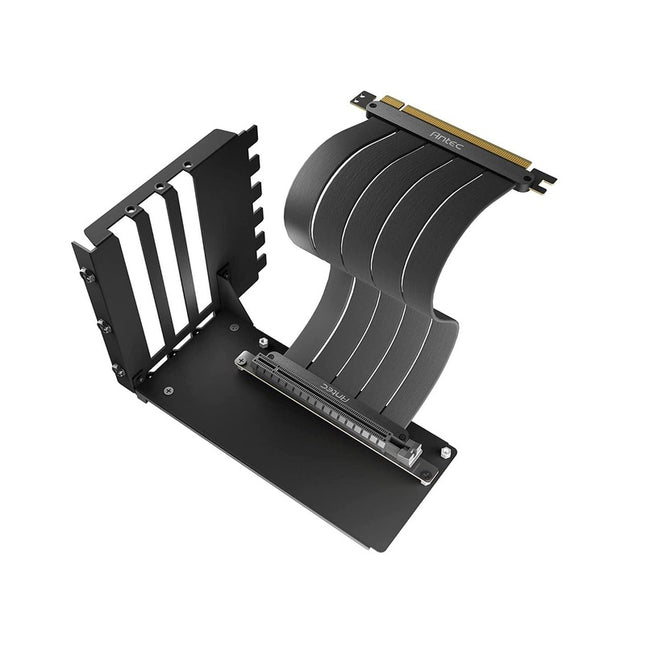

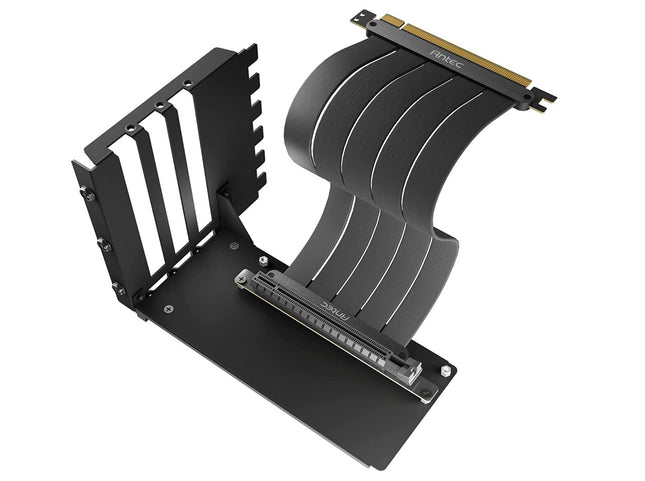

761345700009 AT-RCVB-BK200-PCIE4-RTX40 200mm PCIE- Expansion Cable With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
4090, 7900XT and Antec Case Performance 1 FT, C8, P20C Range, DP503 and DP 505

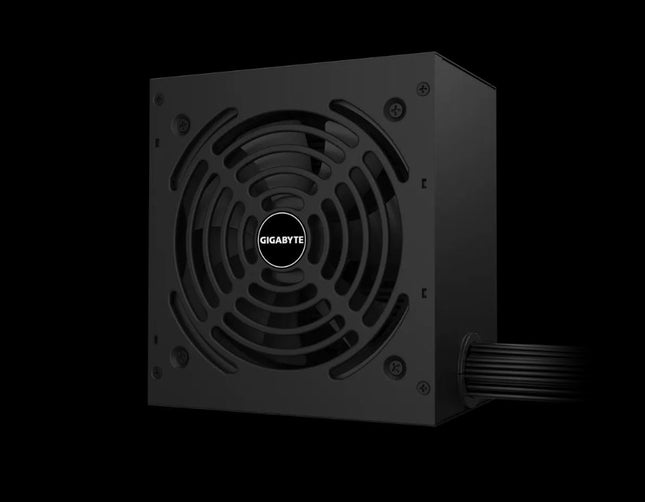

4719331553807 GP-P650G Gigabyte GP-P650G 650W ATX PSU Power Supply 80+ 120mm 12V >100K Hrs 60-50 Hz 650W 120mm Fan
Model
GP-P650G
Type
Intel Form Factor ATX 12V
PFC
Active PFC(>0.9 typical)
Input Voltage
100-240 Vac(full range)
Input Current
9-4A
Input Frequency
60-50 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
AT-ECAB-BK300-C1P4BK AT-ECAB-BK300-C1P4BK Antec Adjustable CIP4 Bracket and CIP4 Cable Kit White
24ATX x 1
4+4 EPS x 1
8PIN PCI-E x 2
6 Pin PCI-E Extension x 2.
16AWG Thicker, High Performance 300mm long Length. Universal, Keeps system neat and clean.
AT-ECAB-BK300-C1P4-W
761345700016 AT-RCVB-W200-PCIE4-RTX40 200mm PCIE- Expansion Cable With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
4090, 7900XT and Antec Case Performance 1 FT, C8, P20C Range, DP503 and DP 505

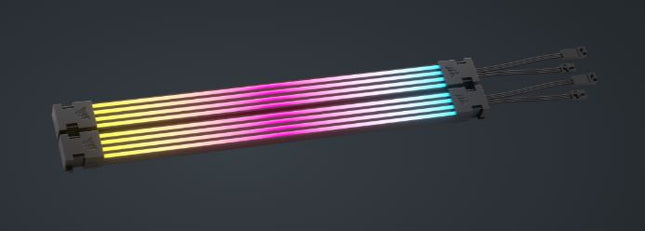

840006662211 CP-8920282 Corsair ARGB PSU Cable Strips
Add more color to your PC with CORSAIR ARGB PSU Cable Strips, an add-on for your PSU cables using a scalable design to fit any form-factor cable.
Includes
- 2x Strips with 100 individually addressable RGB LEDs each
- Includes various cable clips for attachment to any PSU cable
- Simple +5V ARGB motherboard control or advanced iCUE control (iCUE controller sold separately)
- Smoothly diffused lighting through highly flexible silicone tubes
SPEC
Product Length 230
Continuous Power W NA
Weight 0.19

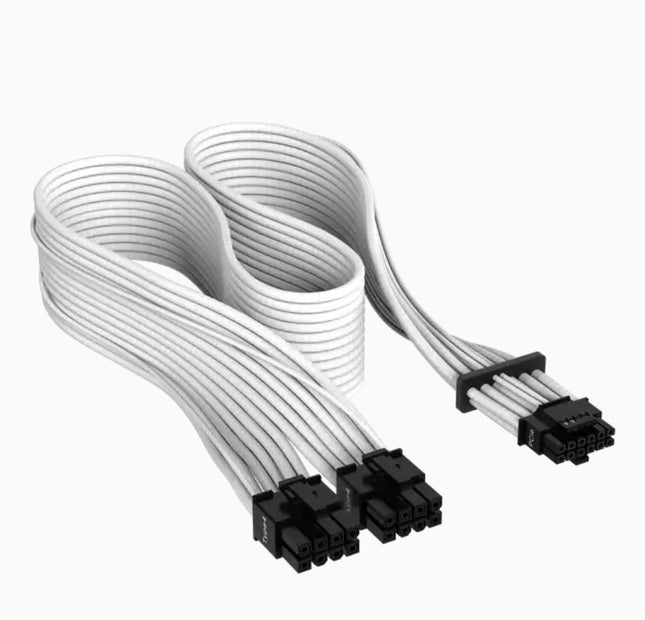

840006694526 CP-8920332 The official CORSAIR Premium Individually Sleeved 600W PCIe 5.0 / Gen 5 12VHPWR PSU Cable delivers power from your CORSAIR Type-4 PSU to the most advanced PCIe 5.0 graphics cards.
PCIe 5.0 / GEN 5 12VHPWR
PSU POWER CABLE
POWER YOUR GEN 5.0 GPU WITH YOUR EXISTING POWER SUPPLY UNIT
If your CORSAIR PSU can handle the power requirements of the PCIe 5.0 GPU, all you need is a cable that does as well.
SUPERIOR FLEXIBLE SLEEVED CABLES
This high-quality cable reliably delivers power from your CORSAIR PSU to the latest PCIe 5.0 graphics cards, without the need for a 12+4pin adapter.
Triple-layer mesh paracord sleeved cables provide easy cable routing and stylish aesthetics. Available in four different patterns.
for use with all Type 4 CORSAIR PSUs.
To see if your PSU is compatible, check out our PSU Cable Compatibility List.
https://www.corsair.com/ww/en/psu-cable-compatibility
0-761345-77718-6 AT-ARCVB-BK200-PCIE4 With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ Assumed RTX4050/AMD 6000 series.
761345776776 AT-ECAB-W300-C1P4-W/GY Antec Adjustable CIP4 Bracket and CIP4 Cable Kit White & Grey
24ATX x 1
4+4 EPS x 1
8PIN PCI-E x 2
6 Pin PCI-E Extension x 2.
16AWG Thicker, High Performance 300mm long Length. Universal, Keeps system neat and clean. Premium Sleeved.
AT-ECAB-W300-C1P4-W/GY
761345200516 GSK850-AU Antec GSK850-AU 80+ Gold Fully Modular PSU
Introducing our GSK ATX 3.1 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect brilliant performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet cooling. The power supply is also 100% modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The GSK ATX3.1 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.

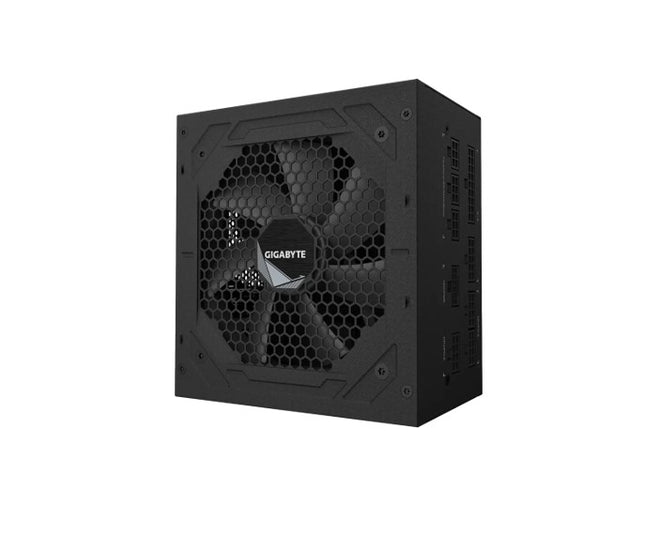

4719331553654 GP-UD750GM PG5 Gigabyte UD750GM PG5 750W ATX PSU Power Supply 80+ Gold >90% Black Flat Cables Single +12V Rail Japanese >100K Hrs (NEW)
KEY FEATURE
Ultra Durable
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
SPECIFICATIONS
Model
GP-UD750GM PG5
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

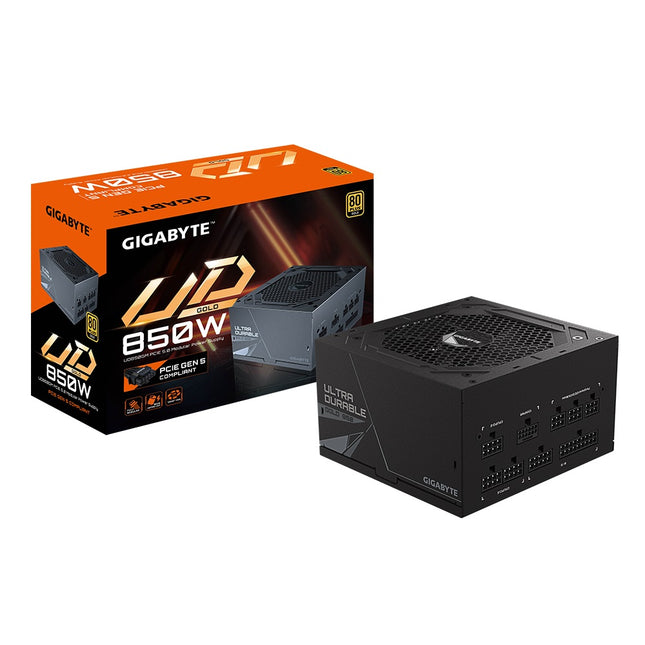

4719331553111 GP-UD850GM PG5 Gigabyte UD850GM PG5 (rev. 2.0) 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours
Model GP-UD850GM PG5
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 60-50 Hz
Output Capacity 850W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

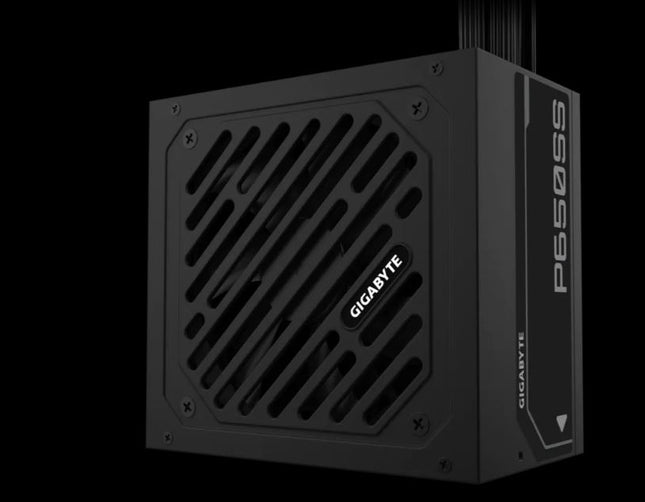

4719331554125 GP-P650SS Gigabyte GP-P650SS 650W ATX PSU Power Supply 80+ Silver 120mm 12V >100K Hrs 50-60 Hz 650W 120mm Fan
Model
GP-P650SS
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC(>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
50-60 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS
Silver
Efficiency
90% at typical load (230V EU)
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
PCI-e 6+2 Pin x 2 : 600mm*2
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
761345778022 AT-ARCVB-W190-A-PCIE4-RTX4 PCI-E 4.0 190mm Expansion Cable. RGB LED Lightning Effect
With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis.
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 4.0 / 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
For RTX30/RTX4060/RTX4060ti/ Assumed RTX4050/AMD 6000 series. RTX 4090 Cards
Compatible Case: Antec Performance 1 FT, Constellation Range / P20C / DP / DF series

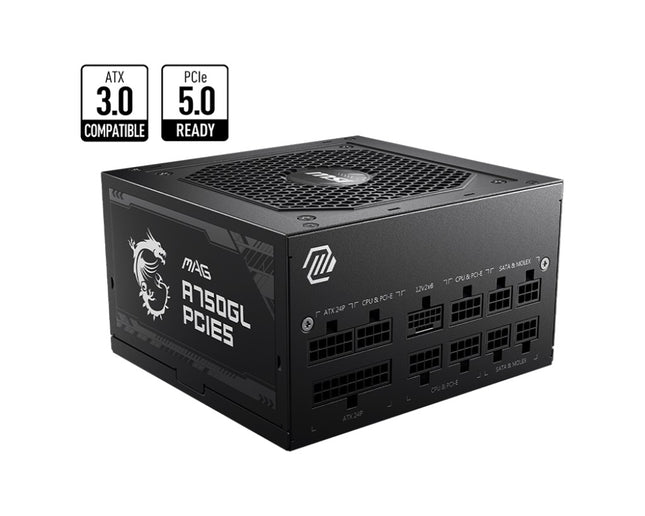

4711377084284 MAG A750GL PCIE5 MSI MAG A750GL PCIE5 750W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 750W, 47-63Hz, PCI-E, SATA, FDD
FEATURES:
MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Supports the NVIDIA GeForce RTX™ 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 750W
POWER EXCURSION 1500W (*up to 200% of the PSU's rated power for 100μs)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (450W)
PCI-E (6+2 PIN) 3
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1
0761345777070 AT-RCVB-BK200-PCIE4 PCI-E 4.0 200 mm Expansion Cable. With movable bracket, More flexible in using PC case interior space. NOTE: only support FULL-BREAK PCIE Expansion Slot Chassis. RTX 4050 / 4060 / 4070 / 5060 / 5070 and AMD 6000 & 7000 series
High stability and full PCIe Gen4 x16 speed, plug and play. Backward-compatible with PCIE 3.0/PCIE 2.0/PCIE 1.0.
Ultimate High Speed：The extender is capable of expanding bandwidth up to 16Gbps and beyond, featuring extremely fast graphic data transmission.
Flexible Cable Sleeves：Durable cable sleeves allow for max flexibility, it won’t affect the cable transmission and makes cable management easy.
4060, RTX 3090, AMD RX6000 series
