Description

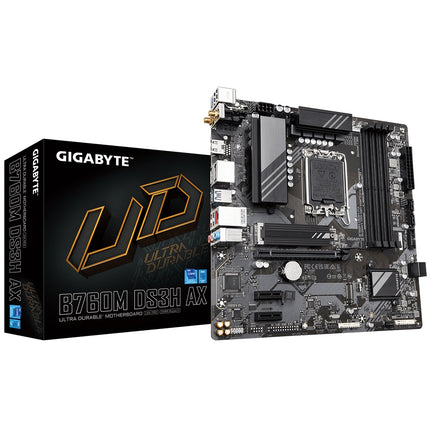

4719331851767 B760M DS3H AX Gigabyte B760M DS3H AX Intel LGA 1700 mATX Motherboard, 4x DDR5 ~192GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 1x USB-C, 2x USB 2.0
FEATURES:
Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN & Wi-
SPECIFICATIONS:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Memory
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
2 x DisplayPort,
Expansion Slots
1x PCI Express x16 slot
2x PCI Express x1 slot
Storage Interface
2 x M.2 connector
4 x SATA 6Gb/s connectors
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
