Description

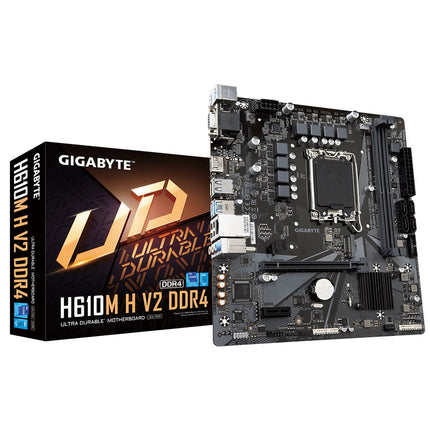

4719331851743 H610M H V2 DDR4 1.0 Gigabyte H610M H V2 DDR4 1.0 LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 2x USB 3.2, 4x
FEATURES:
Supports 13th and 12th generation Intel ® Core™ processors
Integrates 2 memory slots, supports dual-channel Non-ECC DDR4 memory
6+1+1 phase power supply design
Gigabit high-speed network card equipped with intelligent management software
High-speed NVMe PCI-E M.2 SSD slot
High-quality audio dedicated capacitor + independent audio block isolation line
Smart fan 6 technology, integrated multi-point temperature measurement function and adopts hybrid fan socket and supports FAN STOP technology
Easy-to-use GIGABYTE APP Center
Anti-sulfur resistance design prolon
CPU
LGA1700 socket, supports 13th generation Intel ® Core™ processors and 12th generation Intel ® Core™, Pentium ® Gold and Celeron ® processors*
L3 cache depends on CPU
Memory
Support DDR4 3200/3000/2933/2666/2400/2133 MT/s
2 x DDR4 DIMM slots, can support up to 64 GB (single slot supports 32 GB capacity)
Supports dual-channel memory technology
Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (running in non-ECC mode)
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory
Display Function
Graphics-based processor - supports Intel ® HD Graphics:
1 VGA interface, can support up to 1920x1200@60 Hz resolution
1 HDMI interface, can support resolution up to 4096x2160@60 Hz
* Support HDMI 2.0 version and HDCP 2.3.
Expansion Slot
1 PCI-E x16 slot, supports PCI-E 4.0x16 operation specification
1 PCI-E x1 slot, supports PCI-E 3.0x1 operation specification
USB
4 USB 3.2 Gen 1 ports (2 are on the rear window IO, 2 need to be connected to the USB socket on the motherboard via a cable)
4 USB 2.0/1.1 ports on the rear window IO
4 USB 2.0/1.1 ports on the rear window IO4 USB 2.0/1.1 ports, connected from the USB socket on the motherboard via cables
PCB specificationMicro ATX format; 23.0cm
