Description

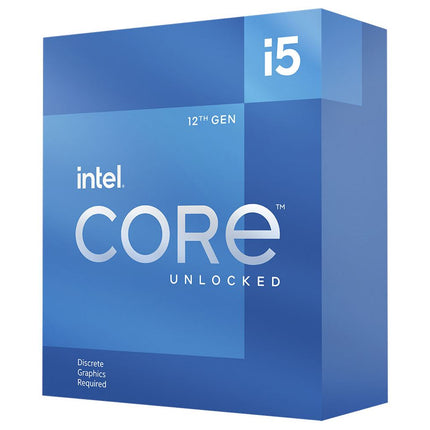

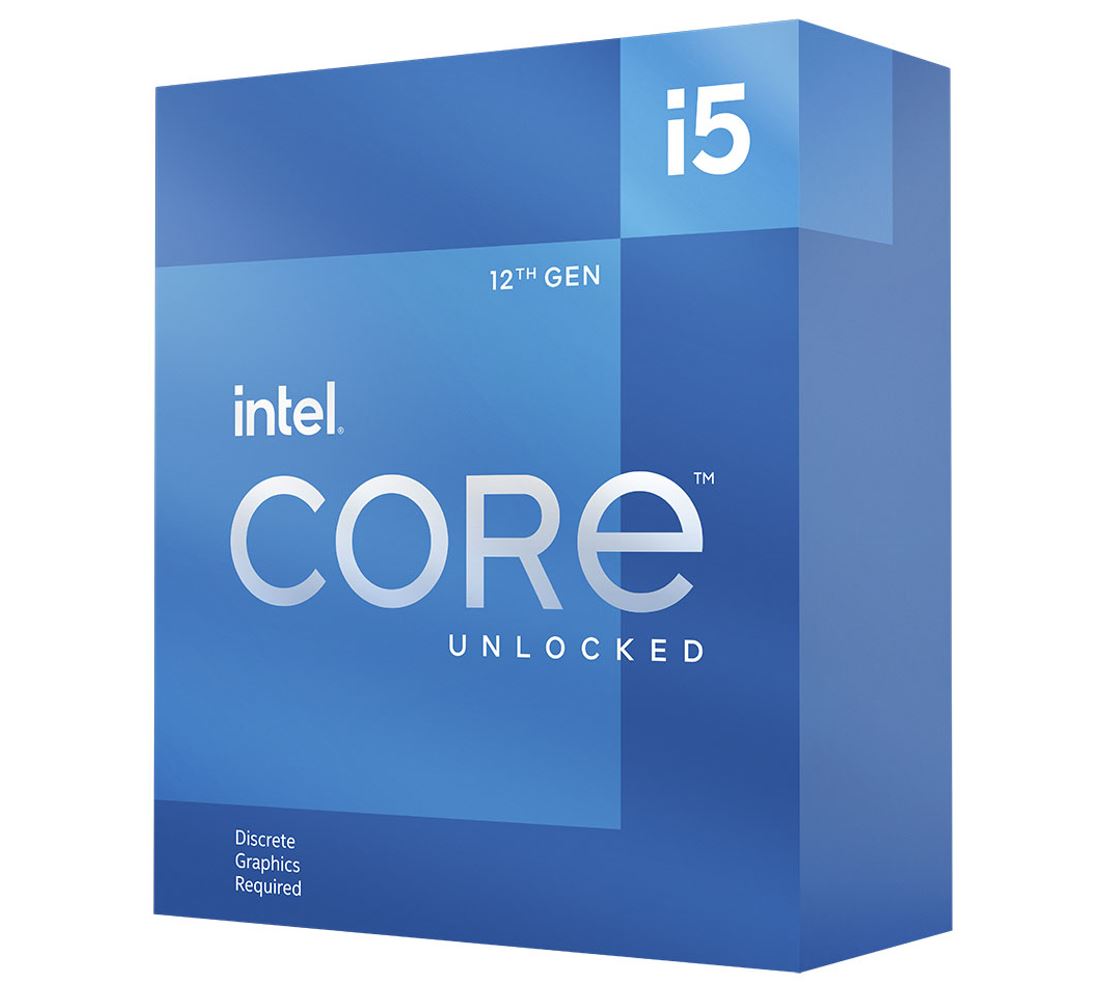

5032037234115 BX8071512600KF Intel i5-12600KF CPU 3.7GHz (4.9GHz Turbo) 12th Gen LGA1700 10-Cores 16-Threads 25MB 125W Graphic Card Required Unlocked Retail Box Alder Lake
Essentials
Product Collection 12th Generation Intel® Core™ i5 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i5-12600KF
Status Launched
Launch Date Q4'21
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.90 GHz
Performance-core Max Turbo Frequency 4.90 GHz
Efficient-core Max Turbo Frequency 3.60 GHz
Performance-core Base Frequency 3.70 GHz
Efficient-core Base Frequency 2.80 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 125 W
Maximum Turbo Power 150 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
