Description

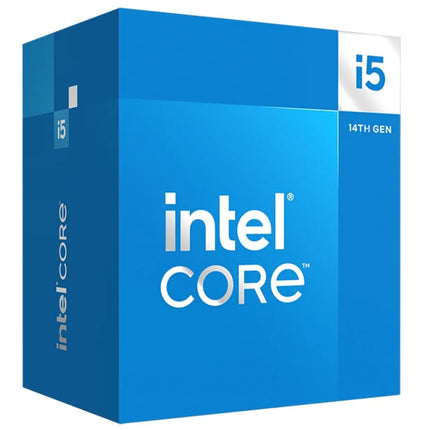

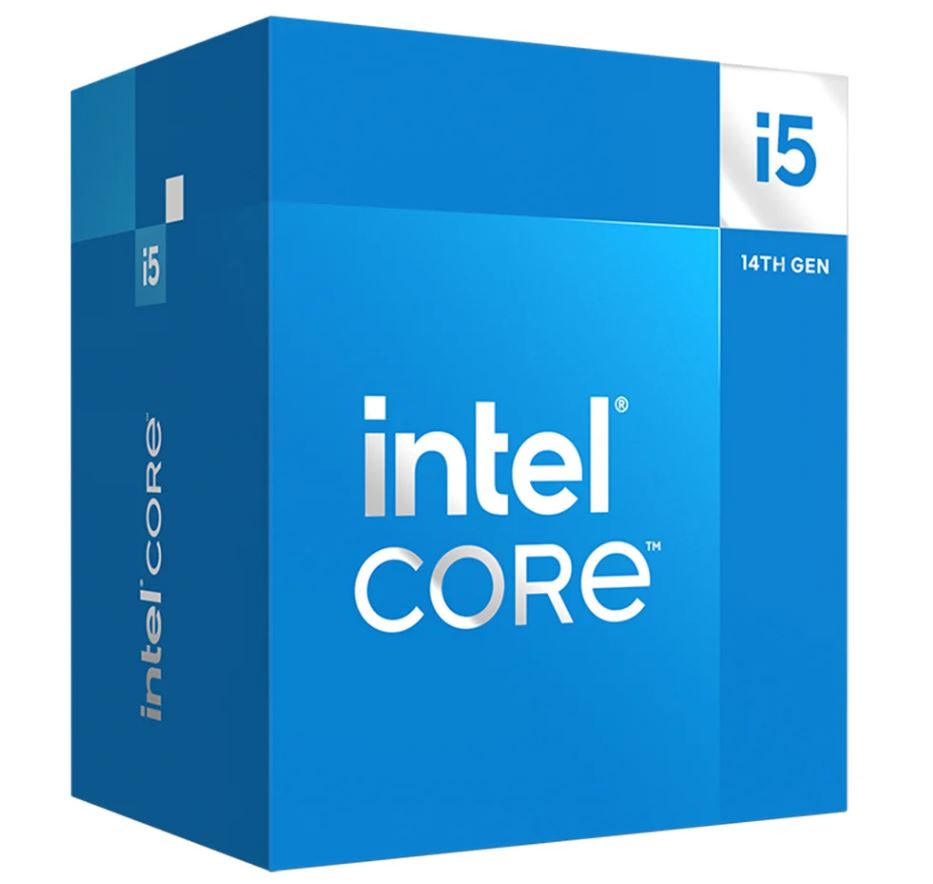

5032037279130 BX8071514400 Intel i5 14400 CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 10-Cores 16-Threads 29.5MB 65W UHD Graphics 730 Retail Raptor Lake with Fan
Essentials
Product Collection Intel® Core™ i5 Processors (14th gen)
Code Name Products formerly Raptor Lake
CPU Specifications
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Efficient-core Max Turbo Frequency 3.5 GHz
Performance-core Base Frequency 2.5 GHz
Efficient-core Base Frequency 1.8 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Specifications
GPU Name‡ Intel® UHD Graphics 730
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4682/0xA782
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
