Description

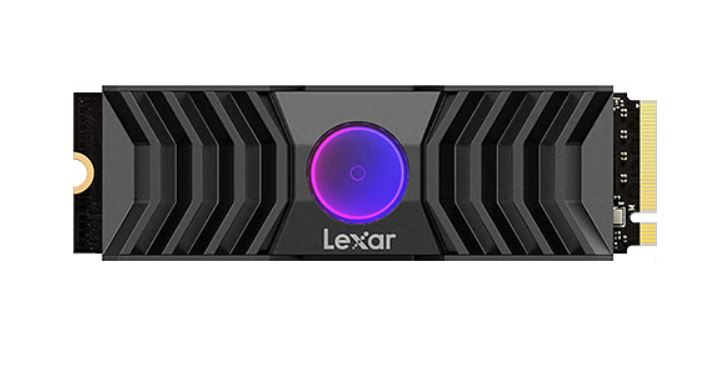

843367134359 LNM1090002T-RNANG Lexar LNM1090002T-RNANG 2TB PCIe G5x4 M.2 2280 up to 12000MB/s read, 11000MB/s write, with RGB FAN Heatsink
Key Features
· High-speed Performance
· PCIe Gen 5x4 Interface
· Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs
· 2TB-sequential read up to 12,000MB/s, write up to 11,000MB/s Random read up to 1400K IOPs, random write up to 1400K IOPs
Full-throttle Performance, Maximized Cooling
With lightning-fast speeds up to 12000MB/s read, 11000MB/s write and an RGB heatsink with a heat-blasting fan, the Lexar Professional NM1090 PCIe 5.0 SSD is designed for superior performance. The drive features SLC dynamic cache which improves performance and reduces latency, plus it supports Microsoft DirectStorage and is compatible with Intel 13 and 14 and AMD Ryzen 7000 series CPUs.
Twice as Fast as PCIe 4.0
PCIe 5.0 speeds of up to 12000MB/s read, 11000MB/s write deliver cutting-edge performance.
Exceptionally Cool Design
A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.
Built to Perform
The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.
CPU Compatibility
Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs.
Monitor Drive Health and Optimize Performance
Supports Lexar DiskMaster disk management tool.
Rigorously Tested
All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.
Specifications
Form Factor
M.2 2280
Interface
PCIe Gen5x4
Speed
1TB sequential read up to 11,500MB/s, write up to 9,000MB/s
Random read up to 1300K IOPs, random write up to 1400K IOPs
2TB sequential read up to 12,000MB/s, write up to 11,000MB/s
Random read up to 1400K IOPs, random write up to 1400K IOPs
4TB sequential read up to 12,000MB/s, write up to 11,000MB/s
Random read up to 1400K IOPs, random write up to 1400K IOPs
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 3000TBW
MTBF
1,500,000 Hours
Dimensions (L x W x H)
80 x 24 x 17.35mm / 3.15' x 0.94' x 0.68'
Weight
72.5g / 0.16 lbs
Warranty
Five-year limited warranty
