Description

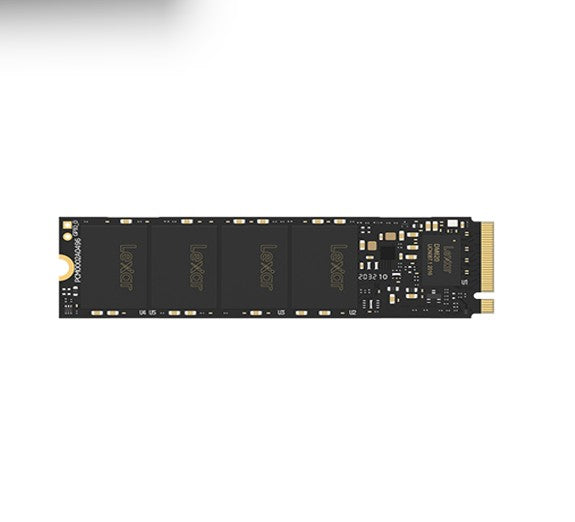

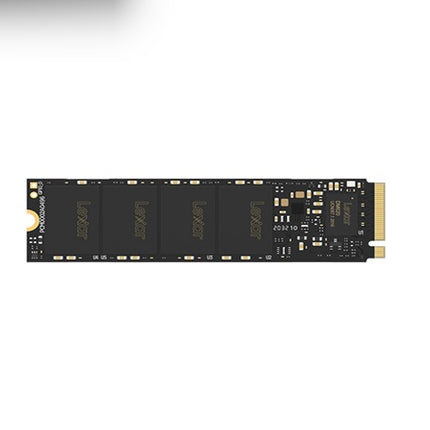

843367123162 LNM620X001T-RNNNG Lexar 1TB M.2 2280 PCIe Gen3x4, read up to 3500MB/s, write up to 3000MB/s
- High-speed PCIe Gen3x4 interface: Lexar 1TB SSD up to 3500MB/s read and 3000MB/s write - NVMe 1.4 supported.
- Lexar internal SSD M.2 2280 form factor’s with 3D NAND.
- Lexar solid state drive gets 6x the speed of a SATA-based SSD.
- Lexar SSD’s ideal for PC enthusiasts and gamers.
- Lexar internal solid state drive’s shock and vibration resistant with no moving parts.
Specifications
Form Factor M.2 2280
Interface PCIe Gen3x4
Performance
512GB - sequential read up to 3500MB/s, write up to 2400MB/s
IOPS: up to 200/256K
1TB - sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
2TB - sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H) 80 mm x 22 mm x 2.25 mm / 3.15' x 0.87' x 0.09'
Weight 9g
Warranty 5 year limited warranty
Shock Resistant 1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW 2TB:1000, 1TB: 500TB, 512GB: 250TB, 256GB: 125TB
DWPD 1TB: 0.44, 512GB: 0.44, 256GB: 0.44
NAND flash 3D TLC
MTBF 1,500,000 Hours
