Description

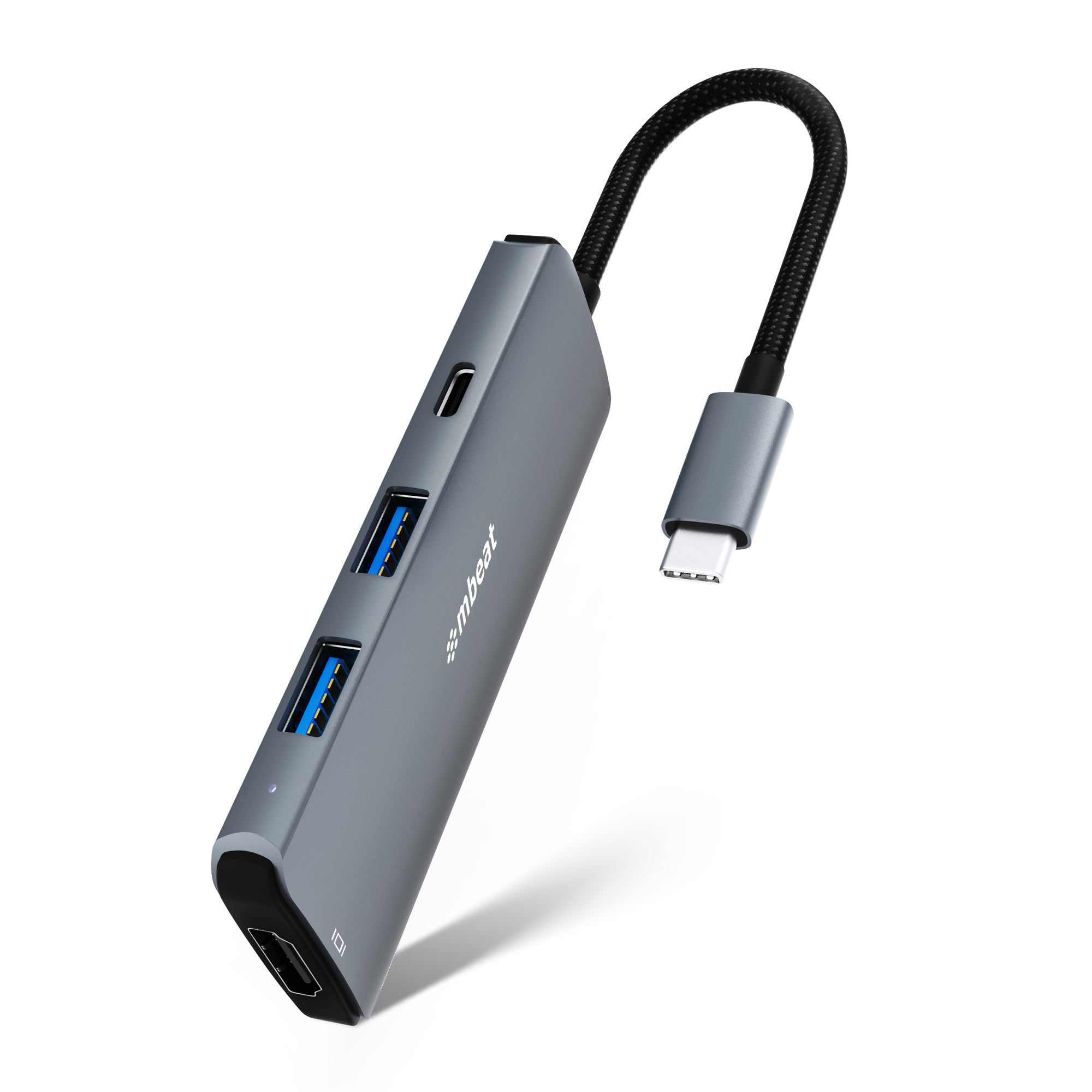

9346396003395 MB-UCD32-U7 mbeat Elite 7-in-1 Multifunction USB-C 3.2 Hub with 8K HDMI 100W Pass Through - 1x HDMI, 2x USB-A 1x USB-C, 1x USB-C 100W Charging, 1x Micro-SD
Features
• Premium 7-in-1 USB-C 3.2 Gen2 multifunction hub with 8K HDMI video and 10Gbps data transfer.
• Crystal clear 8K display extended option using built in HDMI® 2.1, with HDR, HDCP 1.4/2.3 support.
• Transfer data with two USB 3.2 Gen2 ports, up to 10Gbps each for faster upload/downloads simultaneously.
• Additional Type-C 3.2 Gen2 port supports super-fast USB-C data transfer up to 10Gbps.
• 100W USB-C PD pass through, charge any compatible USB-C PD enabled laptops at maximum speed.*
• High-speed SD and MicroSD 3.0 card readers make media file transfers a breeze.
• Future proof specifications with universal compatibility and backward compatible with USB 3.0 and USB 2.0.
Specifications
Upstream Port:
• USB-C 3.2 Gen2 × 1: 10Gbps
Downstream Port:
• USB-C 3.2 Gen2 × 1: up to 10Gbps
• USB 3.2 Gen2 Port × 2: up to 10Gbps
• USB-C PD × 1: up to 100W Pass Through
• HDMI® 2.1 × 1: 8K@30Hz, supports HDCP1.4/2.3HDR
• SD Card Reader × 1: SD 3.0, compatible with SDXC, SDHC and SD
• MicroSD Card Reader × 1: MicroSD 3.0, compatible with MicroSDXC, MicroSDHC and MicroSD
Display Configuration:
8K@30Hz, 4K@120Hz, 60Hz, 1080P@120Hz, 720P@60Hz
Compatibility and Performance Limitation:
• USB-C 3.2 Gen2 is backward compatible with all USB standards. When multiple ports in use, the max upstream bandwidth is 10Gbps
Product is compatible with Windows™ 7, 8, 10, 11 and Mac™ OS 10.12
• Laptop or computer USB Type-C port must support USB-C DisplayPort Alt mode, MacBook™ (2020) with M1 CPU currently only supports 1 external monitor display.
Product and Package:
• Product Dimension: 97.4mm × 37mm × 10.2mm
• Product Weight: 47g
• Package Dimension: 170mm × 95mm × 22mm
• Package Weight: 67g
*** Product does not include external USB-C power supply. ***
