Description
4718006456870 M280CS2340-2TB-TB PNY CS2340 2TB M280CS2340-2TB-TB
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
POWER
PCIe Power Management PS0/PS1/PS2/PS3/PS4
APST,ASPM,L1.2
ENVIRONMENTAL
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Certifications BSMI, CE, FCC, KCC,
REACH, RoHS, VCCI
RELIABILITY/SECURITY
Mean Time Between Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity Check) ECC Algorithm
Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
ADDITIONAL FEATURES
Performance Optimization Host Memory Buffer (HMB)
PRODUCT INFORMATION
PNY Technologies, Inc. 100 Jefferson Road, Parsippany, NJ 07054 | Tel 973-515-9700 | Fax 973-560-5590 | www.PNY.com
All other trademarks are the property of their respective owners. © 2024 PNY Technologies, Inc. All rights reserved.

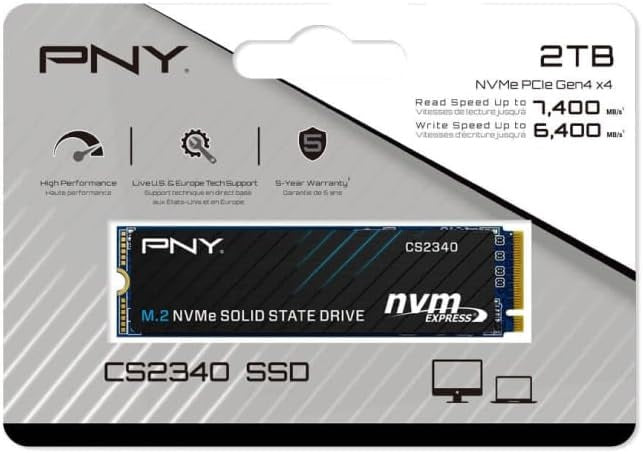

CS2340
Solid State Drive
High Performance
Transfer speed faster than a traditional SSD
Enhanced Reliability
Non-volatile NAND up to 30 times more robust
than HDDs
5-Year Limited Warranty or TBW*
Extended protection and peace of mind
7,400 MB/s (Read), 6,100 MB/s (Write)
2TB 7,400 MB/s (Read), 6,400 MB/s (Write)
1TB
Service & Support 5-Year Limited Warranty or TBW*
Usable Capacities (IDEMA) 1TB, 2TB
PNY Part Number
Retail Dimensions (L x W x H) 123 x 85 x 4.3 mm
Product Dimension (L x W x H) 22 x 80 x 4 mm (Max)
Weight 6.6g
