Description

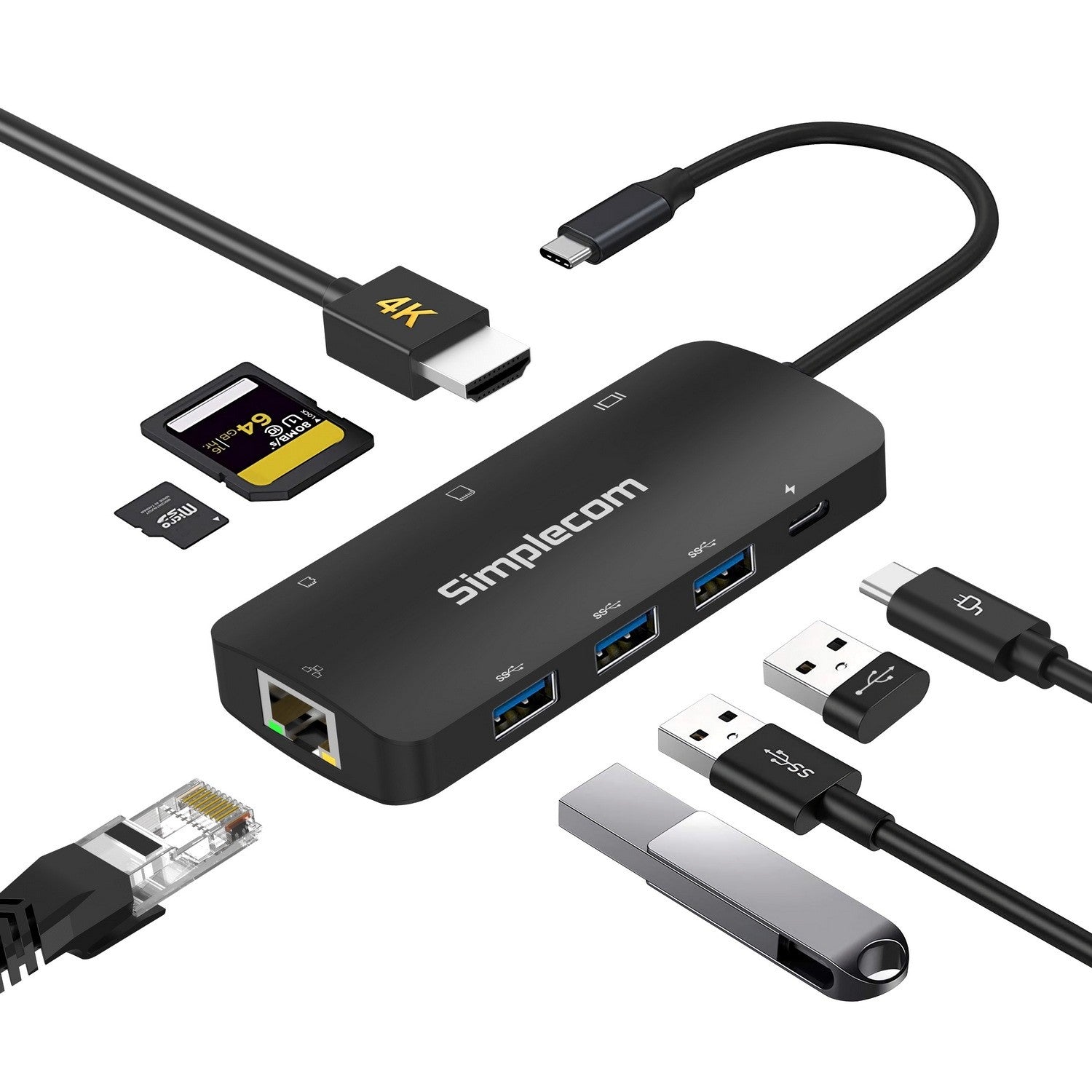

9350414002994 CHT580 Simplecom CHT580 USB-C SuperSpeed 8-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station
Features
8-in-1 USB-C multiport docking station for connectivity expansion to your laptop
Single USB-C to extra USB ports, HDMI, Gigabit Ethernet, Card Reader and PD
SuperSpeed USB ports support data transfer rate up to 5Gbps
HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
Gigabit Ethernet support connection speeds of up to 1000Mbps
USB-C PD port for charging the laptop with up to 100W of power
2-Slot Card reader for SD and microSD memory cards
Durable & stylish aluminium alloy housing
Lightweight and portable, easy to carry along when travelling
Built-in flexible USB-C Cable
Plug & play, no driver software required
Specifications
Host Interface: USB-C
USB Hub: 3x USB-A Female (SuperSpeed 5Gbps)
HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (Hi-Speed 480Mbps)
PD Charging: 1x USB-C Female (for charging only), up to 100W
Operation Temperature: 0 - 45°C
Housing Material: Aluminium
Dimensions: 11 x 4.3 x 1.6 cm
Cable Length: 15 cm
Weight: 67g
System Requirements
USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB-C port or USB4 port
Operating system: Windows 10 or above, macOS 10.12 or above, Android, ChromeOS
Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
Important Note
Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
The USB-C PD port is for PD Charging only, not for data transfer
Only one SD or MicroSD card can be accessed at a time
For more stable connection when using multiple devices, connect
