Description

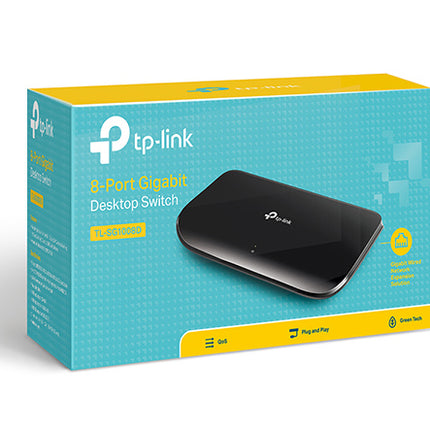

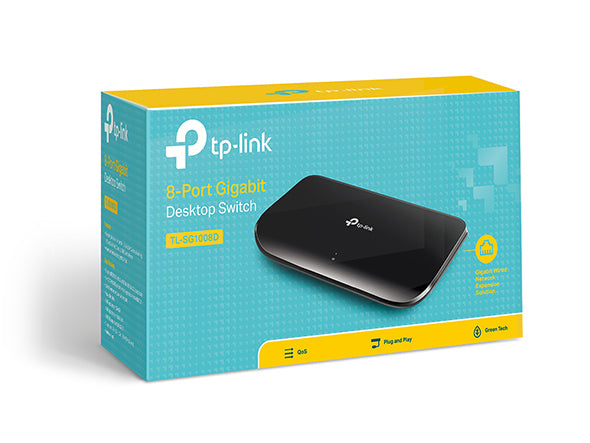

6935364092313 TL-SG1008D TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS
8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 80%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design
Plug and play, no configuration required
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter (Output: 9VDC/0.6A)
Jumbo Frame 15 KB
Switching Capacity 16 Gbps
Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
Max Power Consumption 4.63W(220V/50Hz)
Max Heat Dissipation 15.80BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
MAC Address Table 4K
Advanced Functions Green Technology
802.3X Flow Control
Back Pressure
802.1p/DSCP QoS (for V7 and later version)
OTHERS
Certification FCC, CE, RoHs
Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide
System Requirements
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
